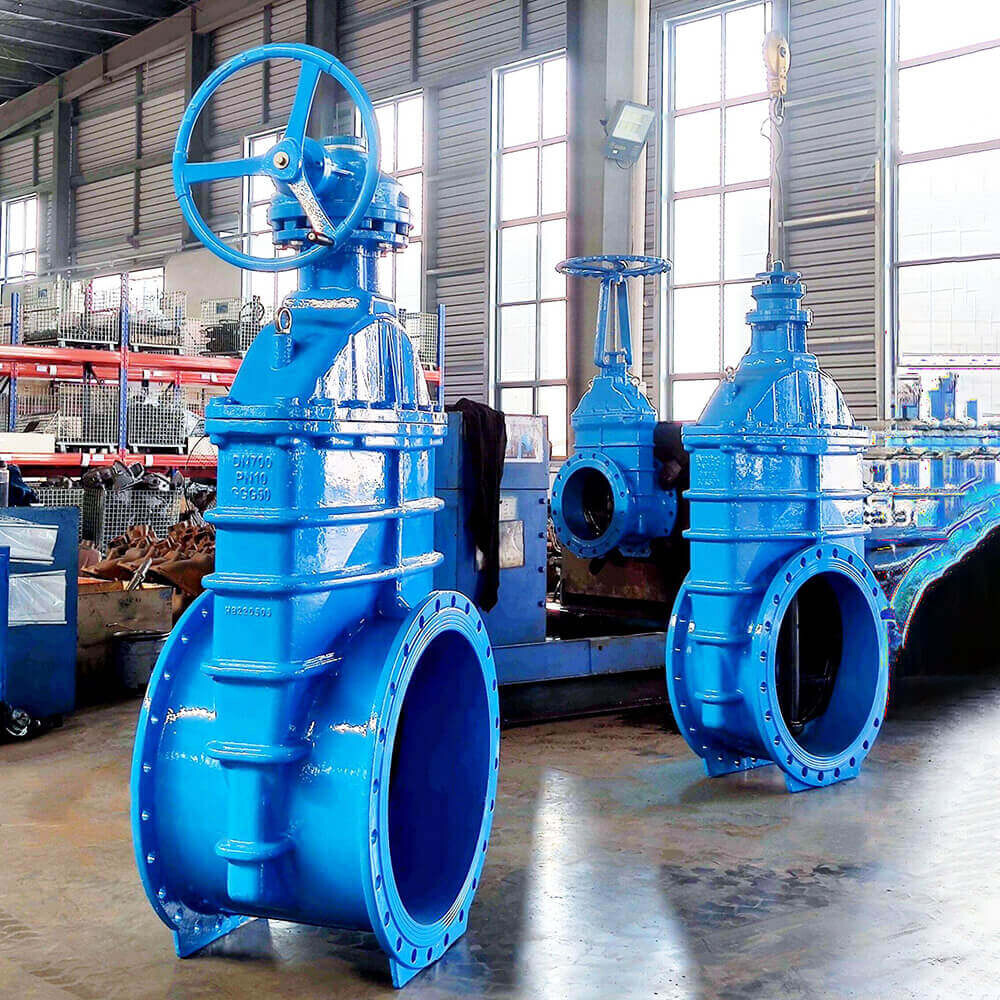

Large Size Resilient Gate Valve

1.Drive: Spur Gear Box + Handwheel/cap

2.Medium: Water

3.Temperature: 0-80°C

4.Seal Test: 11/18 Bar

5.Body Test: 15/24 Bar

6.PN: 10/16 Bar

7.DN: DN700-DN1200

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :
  • Design: EN 1171 / EN 1074
  • Flange: EN 1092-2 PN10/16
  • Face to Face: EN 558-1 Series 3/14/15
  • Tests: EN 12266-1

Specification

huge gate valve size.jpg

DNLDKn-dd1kn-ØSd2fdhsbceHeightGland TypeSwitching CycleClosing Torque (N.m)Tr
350381520460/47016-Ø23/16-Ø281751404-Ø181014Ø345550102937.3700F1430.5300Tr40×12 (P6) LH
400406580515/52516-Ø28/16-Ø312101654-Ø221316Ø367065103139.3700F1634.5350Tr40×12 (P6) LH
450432640565/58520-Ø28/20-Ø312302104-Ø221316Ø387065103139.3900F1628.4400Tr46×16 (P8) LH
500457700620/65020-Ø28/20-Ø342302104-Ø221656Ø429085123745.3950F2532.5450Tr46×16 (P9) LH
600508780/840725/77020-Ø31/20-Ø373002548-Ø222016Ø509085123745.31130F3034.5600Tr50×18 (P9) LH
700610895/91084024-Ø31/24-Ø373502988-Ø222316Ø659085185869.41430F3039800Tr65×18 (P9) LH
8006601015/102595024-Ø34/24-Ø413502988-Ø222316Ø659085185869.41480F3045900Tr65×18 (P9) LH
