• DN15 Ball Valve with Short Stem
DN15 Ball Valve with Short Stem

1.The general tolerance is according to DlN ISO 2768mK.

2.The tolerance of form and position is according to DIN EN ISO 1101.

3.The surface information is according to DIN EN ISO1302 2nd row


Chat Now
Message
PRODUCTS
CONTACT US
Tel: +86- 532- 66952179/66952176/66952181
Email: qdiflow@qdiflow.com
Fax: +86-532-66952181
Sales office address: No.1001, Building 8, Liandong U Valley Kechuang Center, Chongqing Middle Road, Licang District, Qingdao, Shandong, China
Factory address: No.1001, Building 8, Liandong U Valley Kechuang Center, Chongqing Middle Road, Licang District, Qingdao, Shandong, China
Description
Specification
Related Products
Inquiry

Description

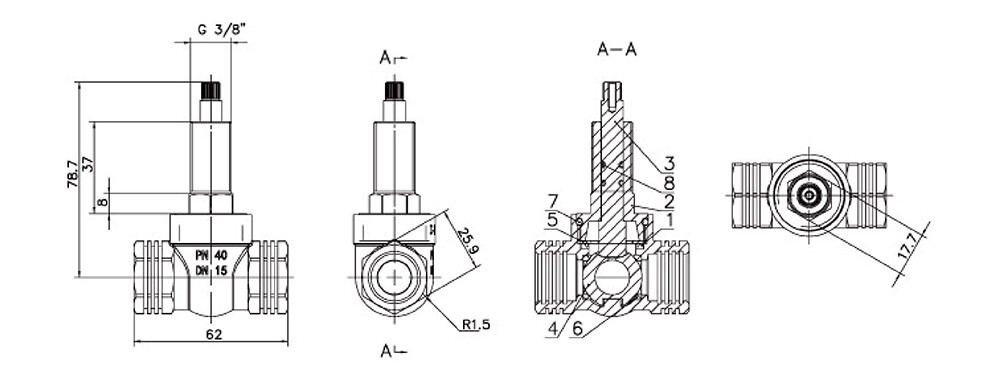

short brass ball valve


Specification

Serial NumberNumber/SpecificationsNameQuantityMaterialWeight
1I-FLOW-2402-00-001DN15 body1CW617N342.76
2I-FLOW-2402-00-002Valve stem thread pressure sleeve1CW617N
3I-FLOW-2402-00-003Drive valve stem (short)1CW617N
4I-FLOW-2402-00-004Valve ball1CW617N
5I-FLOW-2402-00-005Limiting film1304
6I-FLOW-2402-00-006Valve seal2PTFE
723.6×2.85O-Ring1EPDM
85.3×1.8O-Ring2EPDM
