JIS F 7472 Cast Steel 10K screw-down angle valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7472-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	2.1
	SEAT	1.54-0.4

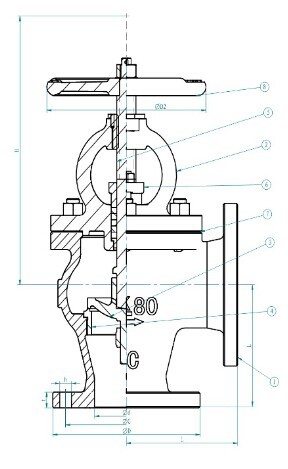

Specification

8	HANDWHEEL	FC200
7	GASKET	NON-ASBESTES
6	PACKING GLAND	BC6
5	STEM	SUS403
4	VALVE SEAT	SCS2
6	DISC	SCS2
2	BONNET	SC480
1	BODY	SC480
NO.	NAME OF PART	MATERIAL
CAST STEEL 10K SCREW-DOWN CHECK ANGLE VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	120	155	120	4	19	16	235	160
65	65	130	175	140	4	19	18	250	200
80	80	140	185	150	8	19	18	255	200
100	100	160	210	175	8	19	18	290	250
125	125	180	250	210	8	23	20	340	280
150	150	205	280	240	8	23	22	385	315
200	200	230	330	290	12	23	22	460	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	120	155	120	4	19	16	235	160
65	65	130	175	140	4	19	18	250	200
80	80	140	185	150	8	19	18	255	200
100	100	160	210	175	8	19	18	290	250
125	125	180	250	210	8	23	20	340	280
150	150	205	280	240	8	23	22	385	315
200	200	230	330	290	12	23	22	460	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	120	155	120	4	19	16	235	160
65	65	130	175	140	4	19	18	250	200
80	80	140	185	150	8	19	18	255	200
100	100	160	210	175	8	19	18	290	250
125	125	180	250	210	8	23	20	340	280
150	150	205	280	240	8	23	22	385	315
200	200	230	330	290	12	23	22	460	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	120	155	120	4	19	16	235	160
65	65	130	175	140	4	19	18	250	200
80	80	140	185	150	8	19	18	255	200
100	100	160	210	175	8	19	18	290	250
125	125	180	250	210	8	23	20	340	280
150	150	205	280	240	8	23	22	385	315
200	200	230	330	290	12	23	22	460	355
