Class 150 bronze 5K SDNR valves openclose indicator



Position: HOME > PRODUCTS > Marine > JIS Marine Valve > Class 150 bronze 5K SDNR valves openclose indicator

Class 150 bronze 5K SDNR valves openclose indicator

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: Sangluoshu town,Huimin county,Binzhou,China

Description

DESIGN STANDARD
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	2.1
	SEAT	1.54-0.4

Specification

5	HANDWHEE	FC200
4	STEM	C3771BD OR BE
3	DISC	C3771BD OR BE
2	BONNET	C3771BD OR BE
1	BODY	BC6
NO.	NAME OF PART	MATERIAL

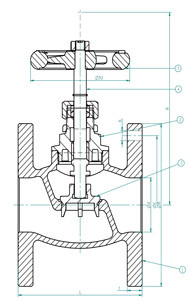

CLASS 150 BRONZE 5K SNDR VALVES OPEN/CLOSE INDECATOR

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	60	95	70	4	12	8	75.5	50
20	20	70	100	75	4	15	9	82.5	65
25	25	80	125	90	4	19	10	88.5	65
32	32	100	135	100	4	19	11	109	80
40	40	100	140	105	4	19	12	121	80
50	50	120	155	120	4	19	13	142	100
65	65	140	175	140	4	19	13	154	125
