JIS F 7377 Cast iron 16K screw-down check valve



Position: HOME > PRODUCTS > Marine > JIS Marine Valve > JIS F 7377 Cast iron 16K screw-down check valve

JIS F 7377 Cast iron 16K screw-down check valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7377-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	3.3
	SEAT	2.42-0.4

Specification

8	HANDWHEEL	FC200
7	GASKET	NON-ASBESTES
6	PACKING GLAND	BC6
5	STEM	CA771BD	SUS403
4	VALVE SEAT	BC6	SCS2
3	DISC	BC6	SCS2
2	BONNET	FC200
1	BODY	FC200
NO.	NAME OF PART	CLASS B	CLASS S
NO.	NAME OF PART	MATERIAL

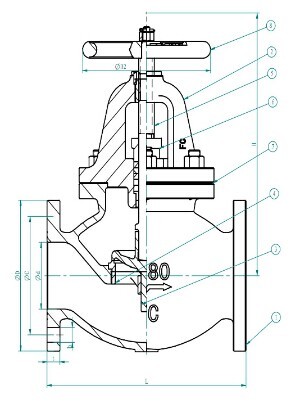

CAST IRON 16K SCREW-DOWN CHECK VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	8	19	20	285	160
65	65	270	175	140	8	19	22	305	200
80	80	300	200	160	8	23	24	335	200
100	100	350	225	185	8	23	26	375	250
125	125	420	270	225	8	25	26	440	280
150	150	490	305	260	12	25	28	500	315
200	200	570	350	305	12	25	30	606	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	8	19	20	285	160
65	65	270	175	140	8	19	22	305	200
80	80	300	200	160	8	23	24	335	200
100	100	350	225	185	8	23	26	375	250
125	125	420	270	225	8	25	26	440	280
150	150	490	305	260	12	25	28	500	315
200	200	570	350	305	12	25	30	606	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	8	19	20	285	160
65	65	270	175	140	8	19	22	305	200
80	80	300	200	160	8	23	24	335	200
100	100	350	225	185	8	23	26	375	250
125	125	420	270	225	8	25	26	440	280
150	150	490	305	260	12	25	28	500	315
200	200	570	350	305	12	25	30	606	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	8	19	20	285	160
65	65	270	175	140	8	19	22	305	200
80	80	300	200	160	8	23	24	335	200
100	100	350	225	185	8	23	26	375	250
125	125	420	270	225	8	25	26	440	280
150	150	490	305	260	12	25	28	500	315
200	200	570	350	305	12	25	30	606	355
