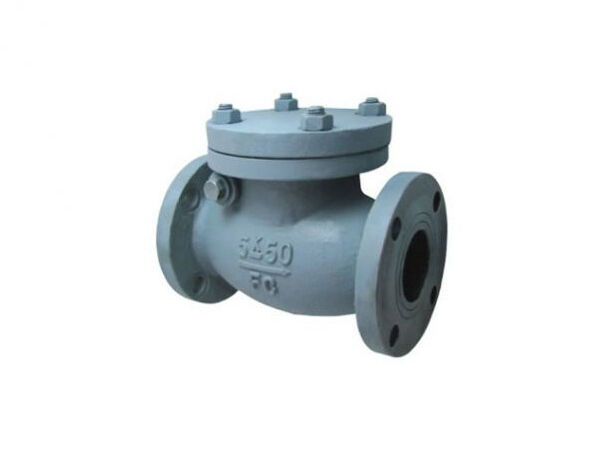

JIS F 7372 Cast rion 5K swing check valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7372-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	1.05
	SEAT	0.77-0.4

Specification

5	GASKET	NON-ASBESTES
4	VALVE SEAT	BC6
3	DISC	BC6
2	BONNET	FC200
1	BODY	FC200
NO.	NAME OF PART	MATERIAL

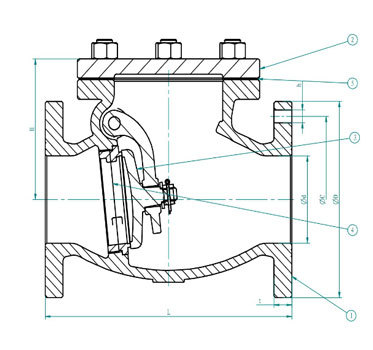

CAST IRON SWING CHECK VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H
50	50	190	130	105	4	15	16	97
65	65	220	155	130	4	15	18	119
80	80	250	180	145	4	19	18	129
100	100	280	200	165	8	19	20	146
125	125	330	235	200	8	19	20	171
150	150	380	265	230	8	19	22	198
200	200	460	320	280	8	23	24	235
250	250	550	385	345	12	23	26	290
300	300	640	430	390	12	23	28	351
