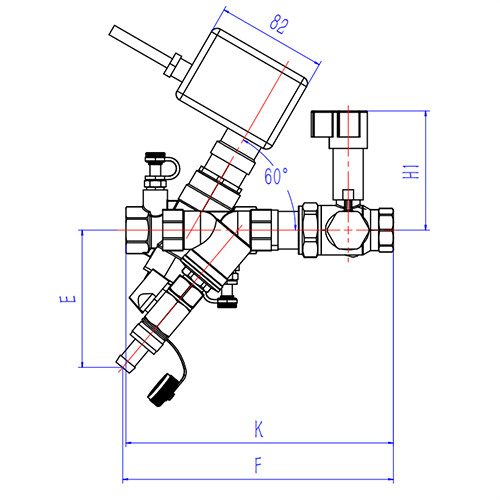

FCU Valve kit is a pre-assembled compact FCU valve package which saves installation time and labor. These pre assembled valve are factory tested and ready to install. The FCU Valve kit coupled with PICV is a perfect choice for your balancing solution.
They are factory assembled arrangement of Ball valves, strainer with drain facility, flexible hoses, insulation box, and pressure test points.
Description
Specification
1.3 way ball valves supply, return and bypass.
2.Strainer is integrated with drain cock for easy flushing.
3.The center distance of the valve group is adjustable.
4.The test port installed on the strainer can be used in conjunction with the inlet test port of the Pressure Independent Control Valve (PICV) to check the pressure drop of the terminal unit—even when the terminal unit is operating normally.
5.The end can be simply isolated to allow for maintenance bypass, flushing, and backwashing.
6.Extended T handles to accommodate insulation thickness.
7.Available with stainless steel flexible hoses of length 150mm to 600mm.Available with fire rated EPP thermal insulation box.
8.P/T plugs provided to check the flow rate.
9.230V/24V on/off and 0~10V modulating actuator available.
