• Class 300 Y-Strainer
Class 300 Y-Strainer

1. Size : 2.5’’-12’’
2.Pressure :CLASS150-300
3. Suitable Mediums:water
4.material:Carbon Steel A216 WCB/A105 ,Stainless steel
5.Standard:API598,EN558-1
6.Type:Y type

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

TECHNICAL REQUIREMENT :
     ● Face to Face  dimensions Conform to EN558-1 list 1
     ● Flange dimensions  Conform to ASME B16.1 CLASS 125
     ● Sheel test pressure:600psi(4.14MPa)
note: 1.DN50~DN300 meshes Φ1.5
            DN350~DN600 meshes Φ3.0
          2.It can be manufactured according to customer’s requirement


Specification



Qingdao I-Flow Co., Ltd

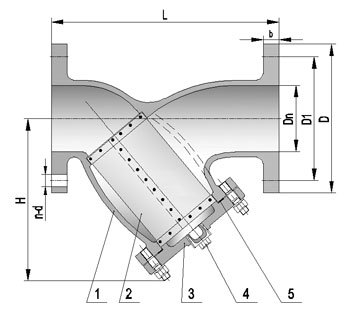

Dimensions data(mm)



NPS 2.5" 3" 4" 5" 6" 8" 10" 12"
Dn 64 76 102 127 152 203 254 305
L 290 310 350 400 480 600 730 850
D 178 190.5 228.6 254 279.4 343 406.4 482.6
D1 139.7 152.4 190.5 215.9 241.3 298.5 362 431.8
b 17.5 19.1 24 24 25.4 28.6 30.2 31.8
n-d 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25
H 186.5 203 250 288 325 405 496 574
