• Dry Barrel Fire Hydrant
Dry Barrel Fire Hydrant

Standard：AWWA C 502;BS750
Pressure:250PSI
Material:cast iron
UL/FM approval

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US
Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :
    ● Design Conform to AWWA C502
    ● Working pressure:250PSI
    ● One pump nozzle,4.5-4NH thread.Two hose nozzle,2.5-7.5NH thread.Other size thread is available.
    ● 6" mechanical joint designed to ANSI/AWWA C153/A21.53.

Specification

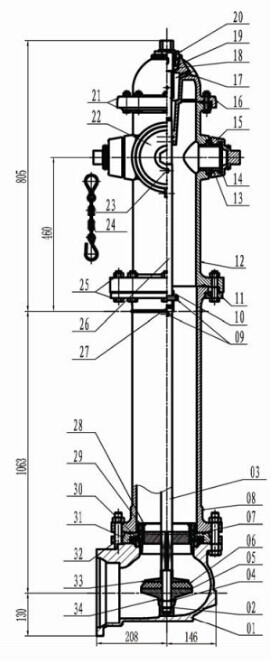

No. Part Name Material

Qingdao I-Flow Co., Ltd

01 Mechanical Connector ASTM A536 65-45-12
02 Locking Nut ASTM A536 65-45-12
03 Connectiong Rod ANSI 1045
04 Locking Nut Gasket EPDM
05 Tray ASTM A536 65-45-12
06 Sealed Tubber Sheet EPDM
07 Guid Bracket ASTM B62
08 Connectiong Cylinder ASTM A536 65-45-12
09 Perforated Cylindrical Pin ANSI 1045
10 Connecting Rod Sleeve ANSI 1045
11 Clamp For Connection Tube ASTM A536 65-45-12
12 Main Body On Ground ASTM A536 65-45-12
13 65 Connector ASTM B62
14 65 Cover Gasket EPDM
15 65 Cover ASTM A536 65-45-12
16 Upper End Cover ASTM A536 65-45-12
17 Thread Plug ASTM B62
18 Screw Stem Nut ASTM B62
19 Screw Nut Gasket ASTM B62
20 Screw Nut Seat ASTM B62
21 Bolt&Nut ANSI 1035
22 100 Cover ASTM A536 65-45-12
23 Cylindrical Pin ANSI 1045
24 Cover Chain ANSI 1045
25 Bolt&Nut ANSI 1035
26 Screw Stem ANSI 1045
27 Cushion Rubber EPDM
28 Pressure Relief Valve ASTM B62
29 Seat ASTM B62
30 Seat ring ASTM B62
31 Seat fixing plate ASTM A536 65-45-12
32 Bolt&Nut ANSI 1035
33 Platen ASTM A536 65-45-12
34 Check turn gasket ASTM A283-B
