• BS750 Fire Hydrant
BS750 Fire Hydrant

Standard：AWWA C 502;BS750
Pressure:250PSI
Material:cast iron
UL/FM approval

Chat Now
Message
PRODUCTS
CONTACT US
Tel: +86- 532- 66952179/66952176/66952181
Email: qdiflow@qdiflow.com
Fax: +86-532-66952181
Sales office address: No.1001, Building 8, Liandong U Valley Kechuang Center, Chongqing Middle Road, Licang District, Qingdao, Shandong, China
Factory address: No.1001, Building 8, Liandong U Valley Kechuang Center, Chongqing Middle Road, Licang District, Qingdao, Shandong, China
Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :

    ● Design and Manufacture Conform to BS750 Type 2c
    ● Flange to EN1092-2 PN16
    ● Fusion bonded epoxy coated inside and out
    ● Bottom drain connection

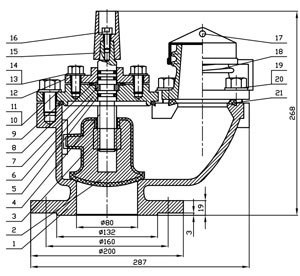

Specification

No. Part Name Material

Qingdao I-Flow Co., Ltd

1 Body ASTM A536 65-45-12
2 Wedge ASTM A536 65-45-12+EPDM
3 Wedge Nut ASTM B148 C95400
4 Stem ANSI 420
5 O-Ring NBR
6 Bonnet ASTM A536 65-45-12
7 Thrust Collar ASTM B16
8 Minipad NYL
9 Gasket NBR
10 Bolt ANSI 201
11 Washer ANSI 201
12 Gland ANSI 201
13 Bolt ASTM A536 65-45-12
14 Washer ANSI 201
15 Cap ASTM A536 65-45-12
16 Bolt ANSI 201
17 Dust Cap NYL
18 Round ASTM B16
19 Bolt ANSI 201
20 Washer ANSI 201
21 O-Ring NBR
