This article breaks down the core differences between float ball valves and ball valves to help you make informed, application-specific decisions.

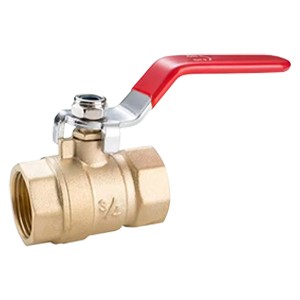

What Is a Ball Valve

A ball valve is a quarter-turn valve that uses a rotating hollow ball to control the flow of fluids and gases. The valve opens and closes by turning the handle 90°, offering reliable shut-off performance and minimal pressure loss. These valves are commonly used in high-pressure pipelines and process systems.Ball valves are praised for their ability to provide tight shut-off, low torque operation, and long service life, making them ideal for applications requiring frequent operation.

Common Features of Ball Valves:

• Available in full port and reduced port designs

• Options include one-piece, two-piece, and three-piece body structures

• Manual, electric, or pneumatic actuation

• Used across water treatment, oil and gas, chemical, marine, and HVAC industries

• Excellent durability and resistance to high pressure and temperature

What Is a Float Ball Valve

A float ball valve, sometimes referred to as a float-operated valve or float valve, is an automatic level control device used to maintain a constant liquid level in tanks or reservoirs. It consists of a float attached to a lever that rises and falls with the water level. As the water rises, the float lifts and closes the valve to stop the inflow.Float ball valves are essential for overflow protection and automated water level control, especially in rural, industrial, or agricultural systems where power supply may be limited.

Common Features of Float Ball Valves:

• Self-regulating—no manual or powered operation required

• Primarily used in water tanks, cooling towers, and irrigation systems

• Ideal for low to medium pressure environments

• Available in plastic, brass, stainless steel, and bronze materials

• Simple design, minimal maintenance

Key Differences: Ball Valve VS Float Ball Valve

When Should You Use Each Valve

• Use a ball valve when you need precision shut-off, high-pressure resistance, or automated flow control in pipelines.

• Choose a float ball valve when your system requires automatic water level management, overflow prevention, or remote tank control without external power.

Common Mistakes in Valve Selection

1. Using a float ball valve in a pressurized pipeline – These valves aren’t built for pipeline shut-off under pressure.

2. Selecting a ball valve for level control – Without sensor integration or automation, ball valves can’t regulate liquid levels.
