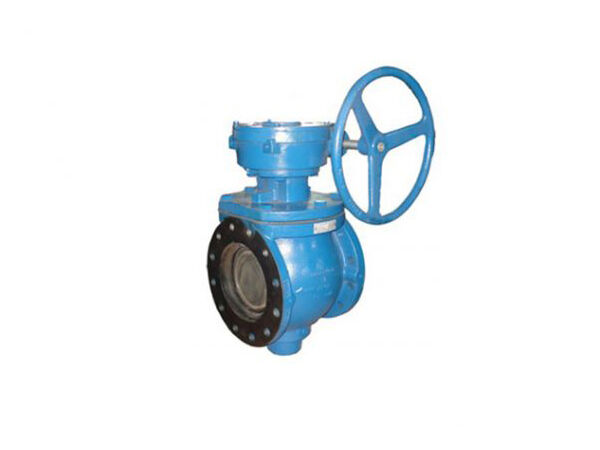

• AWWA C517 Cast Iron Plug Valve
AWWA C517 Cast Iron Plug Valve

Tel: +86-532-66952179/66952180

E-mail: qdiflow@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US
Tel: +86- 532- 66952176
Email: qdiflow@qdiflow.com
Fax: +86-532-66952181
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China
Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :
● Standard:AWWA C517
● Nominal pressure (MPa) :1.0, 1.2, 2.5
● Nominal diameter(inches) : 3--24
● Working temperature (℃) :-10℃-120℃
● Applicable medium : water,  air
● Actuator : manual actuator, electric actuator, hydraulic actuator, pneumatic  actuator

Specification

Pt. No. Parts name  Material

Qingdao I-Flow Co., Ltd


1 Valve body DI/CI
2 Eccentric valve plug DI/CI＋NBR
3 Bolts Stainless steel
4 Seat Pure nickel
5 Bonnet DI/CI
6 Upper bearing Bronze
7 Seal NBR
8 end Bearing  Bronze
9  lower bearing  Bronze


Dimensions data(mm)



NPS A B C D E
3＂ 3.18 7.5 8.38 8 12.94
4＂ 4.25 9 10.22 9 16.16
6＂ 6.25 11 11.5 10.5 18.25
8＂ 8.25 13.5 14.53 11.5 23.91
10＂ 10.25 16 17 13 27.5
12＂ 12.25 19 18.41 14 29.47
14＂ 14 21 19 3/8 17 30 1/4
16＂ 16 1/4 23.5 21  3/16 21 34  3/16
18＂ 18 25 21  3/16 30 34  5/16
20＂ 20 1/8 27.5 23 36 39 3/4
24＂ 24 1/4 32 23 40 41
