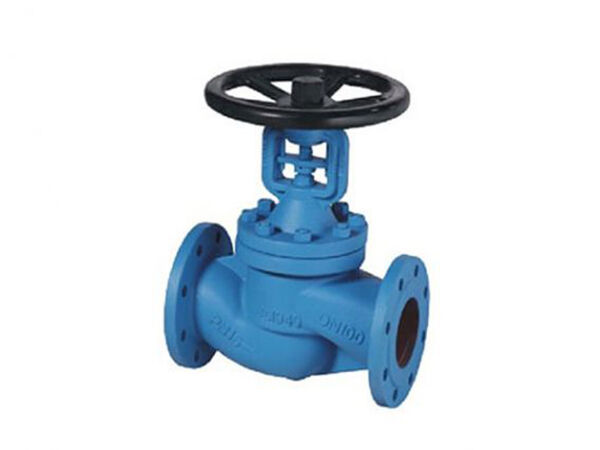

DIN3356 PN16 Cast Iron Bellow Globe Valve



Position: HOME > PRODUCTS > Water > Globe Valve > DIN3356 PN16 Cast Iron Bellow Globe Valve

DIN3356 PN16 Cast Iron Bellow Globe Valve

1.Standard:DIN3356/BS5152/MSS SP-85
2.Medium:water
3.size:DN50-DN300
4.Pressure:CLASS 125-300/PN10-40/200-600PSI
5.Material:CI,DI,CS
6.Driving mode:handwheel,bevel gear,gear

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description

TECHNICAL REQUIREMENT :

● Design and Manufacture Conform to DIN EN 13789

● Flange dimensions Conform to EN1092-2 PN16

● Face to Face dimensions Conform to EN558-1 list 1

● Testing Conform to EN12266-1

Specification

No.	Part Name	Material
1	Body	EN-JL1040
2	Disk	2Cr13/ZCuZn25Al6Fe3Mn3
3	Seat ring	1Cr13/ZCuZn38Mn2Pb2
4	Stem	2Cr13
5	Bellow	304/316
6	Bonnet	EN-JS1030
7	Packing	Graphite
8	Stem nut	ZCuZn38Mn2Pb2
9	Handwheel	Steel

Dimensions data(mm)

DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	130	150	160	180	200	230	290	310	350	400	480	600	730	850
D	95	105	115	140	150	165	185	200	220	250	285	340	405	460
D1	65	75	85	100	110	125	145	160	180	210	240	295	355	410
D2	46	56	65	76	84	99	118	132	156	184	211	266	319	370
b	14	16	16	18	18	20	20	22	24	26	26	30	32	32
n-d	4-14	4-14	4-14	4-19	4-19	4-19	4-19	8-19	8-19	8-19	8-23	12-23	12-28	12-28
f	2	2	3	3	3	3	3	3	3	3	3	3	3	4
H	221	221	232	236	245	254	267	283	348	402	456	605	650	720
W	140	140	160	160	180	200	220	250	300	350	400	450	500	600
