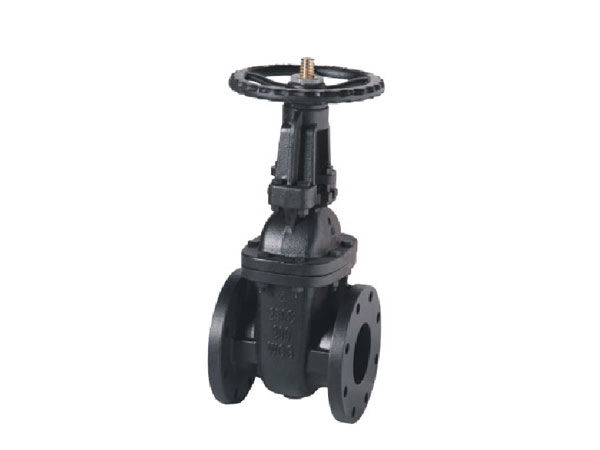

MSS SP-70 Class 125 OS&Y Cast Iron Gate Valve
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material:CI,DI,STAINLESS STAIN,BRASS,BRONZE
5.pressure:CLASS 125-300/PN10-25/200-300PSI
6.Driving mode:handwheel,bevel gear,gear
Tel: +86-532-66952179/66952180
E-mail: qdiflow@qdiflow.com
PRODUCTS
CONTACT US
Tel: +86- 532- 66952176
Email: qdiflow@qdiflow.com
Fax: +86-532-66952181
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China
Description
TECHNICAL REQUIREMENT :
● Design and Manufacture Conform to MSS SP-70
● Flange dimensions Conform to ANSI B16.1
● Face to Face dimensions Conform to ANSI B16.10
● Testing Conform to MSS SP-70
● Driving mode: hand wheel, bevel gear, gear, electric
Specification

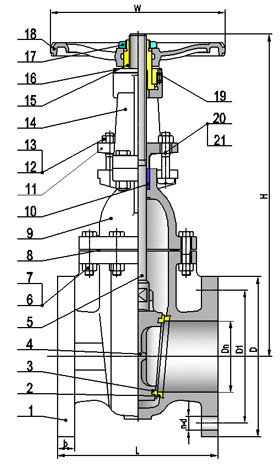

Dimensions data(mm)
