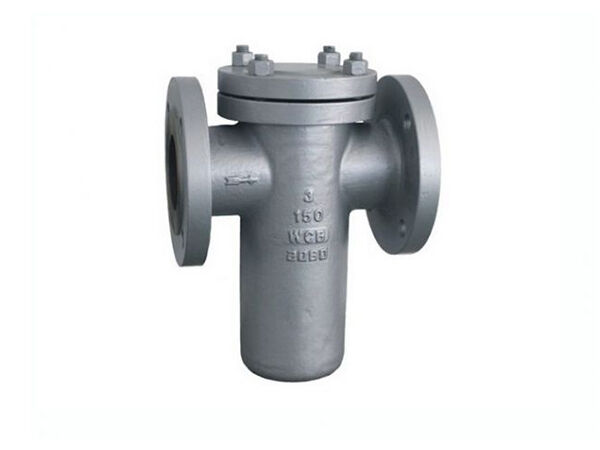

Basket Strainer

1.Standard:API598,EN12266-1
2.Size : DN50~DN600mm (1/2"-12")
3.Pressure :PN10-25,CLASS150-300
4.Suitable Mediums:water , oil , gas,steam
5.Body material:Carbon Steel A216 WCB/A105 ,Stainless steel
Type：Y type ,basket.

Tel: +86-532-66952179/66952180

E-mail: qdiflow@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86- 532- 66952176

Email: qdiflow@qdiflow.com

Fax: +86-532-66952181

Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.

Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description

TECHNICAL REQUIREMENT:

Design and Manufacture: ASME B16.34

Face to face: ASME B16.10

Flanged connection: ANSI B16.5

Test and inspection: API598

Specification

NO.	Part Name	Material
1	Body	SS316	SS304	WCB	LCB
2	Screen	SS316	SS304
3	Bonnet	SS316	SS304	WCB	LCB
4	Bolt	SS316	SS304
5	Nut	SS316	SS304
6	Gasket	Graphite+SS304
7	Plug	SS316	SS304

Dimensions data(mm)

DN	φ	L	H1	H2	H3	B	m^2	Multriple	kg
25	89	220	160	260	360		0.003619	6.0	15.7/13.8
32	89	220	165	270	370		0.003619	4.5	19.2/16.5
40	114	280	180	300	400	R 1/2"	0.005718	4.5	23.6/19
50	114	280	180	300	400		0.005718	3.0	28.9/23
65	140	330	220	350	460		0.009613	3.0	48.4/39
80	168	340	260	400	510		0.01539	3.0	65.3/53
100	219	420	310	470	580		0.02464	3.0	89.3/76
150	273	500	430	620	730		0.04866	3.0	148/126
200	325	560	530	780	900	R 3/4"	0.07858	2.5	185/158
250	426	660	640	930	1050		0.12005	2.5	230/195
300	478	750	840	1200	1350		0.16537	2.3	307/260
