Description

· The LADR-GJ41X electric pinch valves are designed forprovide reliability and long service life in a variety oftough application, including both abrasive and corrosiveprocesses.
· The LADR-GJ41X electric pinch valves' body are to beof the enclosed body or the open-frame body.(As shown)


Body material Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel

Qingdao I-Flow Co., Ltd

Standard API, DIN, JIS, GB
Connection Flange
Certificate ISO9001:2008 TS,CE,API
Medium Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid and corrosive medium.
Sleeve Natural rubber, EPDM, NBR, FPM, IIR
Operation Pneumatic, manual, electric, solenoid
Suitable temperature ≤85℃
Pressure PN10,PN16, 150LB, 10K

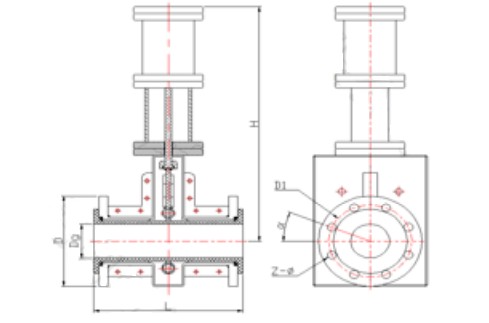

Specification

DN L H Dg D1 D 7-O a
DN20 95 260 20 75 90 4-14 45°
DN25 100 260 25 85 98 4-14 45°
DN32 140 267 32 100 140 4-18 45°
DN50 195 298 50 125 150 4-18 45°
DN65 230 344 65 145 165 4-18 45°
DN80 285 344 80 160 185 4-18 45°
DN100 365 485 96 180 200 8-18 22.5°
DN125 440 492 120 210 220 8-18 22.5°
D150 500 495 145 240 250 8-18 22.5°
DN200 560 750 195 295 285 8-22 22.5°
DN250 630 900 245 355 340 8-22 22.5°
DN300 730 1050 295 410 395 12-22 15°
DN350 890 1200 345 470 445 12-22 15°
