Description
· The LADR-GJ41X electric pinch valves are designed forprovide reliability and long service life in a variety oftough application, including both abrasive and corrosiveprocesses.
· The LADR-GJ41X electric pinch valves' body are to beof the enclosed body or the open-frame body.(As shown)
Body material | Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel | |
Standard | API, DIN, JIS, GB | |
Connection | Flange | |
Certificate | ISO9001:2008 TS,CE,API | |
Medium | Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid and corrosive medium. | |
Sleeve | Natural rubber, EPDM, NBR, FPM, IIR | |
Operation | Pneumatic, manual, electric, solenoid | |
Suitable temperature | ≤85℃ | |
Pressure | PN10,PN16, 150LB, 10K |

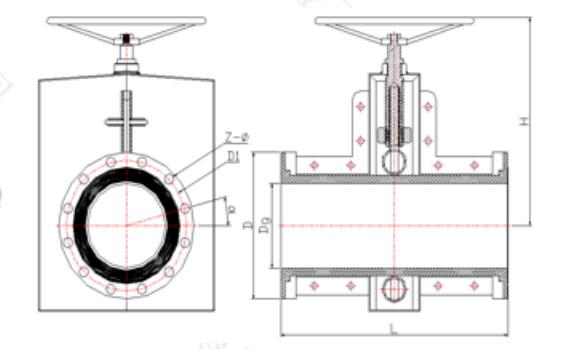

Specification
DN | L(Steel) | L(Aluminium) | H | Dg | D1 | D | 7-0 | |
Dv20 | 95 | 101 | 20 | 75 | 90 | 4-14 | 45° | |
DN25 | 100 | 160 | 109 | 25 | 85 | 98 | 4-14 | 45° |
DN32 | 140 | 180 | 147 | 30 | 100 | 140 | 4-18 | 45° |
DN40 | 140 | 180 | 147 | 38 | 110 | 150 | 4-18 | 45° |
DN50 | 195 | 210 | 162 | 50 | 125 | 165 | 4-18 | 45° |
DN65 | 230 | 250 | 195 | 65 | 145 | 185 | 4-18 | 45° |
DN80 | 285 | 305 | 237 | 80 | 160 | 200 | 8-18 | 22.5° |
Dv100 | 365 | 345 | 288 | 96 | 180 | 220 | 8-18 | 22.5° |
DN125 | 440 | 430 | 293 | 120 | 210 | 250 | 8-18 | 22.5° |
DN150 | 500 | 505 | 447 | 145 | 240 | 285 | 8-22 | 22.5° |
DN200 | 560 | 650 | 475 | 195 | 295 | 340 | 8-22 | 22.5° |
DN250 | 630 | 820 | 544 | 245 | 350 | 395 | 12-22 | 15° |
DN300 | 730 | 980 | 595 | 295 | 400 | 445 | 12-22 | 15° |
DN350 | 890 | / | 700 | 345 | 460 | 505 | 16-22 | 11.25° |
