Electric pinch valve

333.png Simple design.

333.png No Packing to maintain, ever·.

333.png Cost effective.

333.png Low maintenance.

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: Sangluoshu town,Huimin county,Binzhou,China

Description
Specification
Related Products
Inquiry

Description

· The LADR-GJ41X electric pinch valves are designed forprovide reliability and long service life in a variety oftough application, including both abrasive and corrosiveprocesses.
· The LADR-GJ41X electric pinch valves' body are to beof the enclosed body or the open-frame body.(As shown)


Body material Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel

Qingdao I-Flow Co., Ltd

Standard API, DIN, JIS, GB
Connection Flange
Certificate ISO9001:2008 TS,CE,API
Medium Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid and corrosive medium.
Sleeve Natural rubber, EPDM, NBR, FPM, IIR
Operation Pneumatic, manual, electric, solenoid
Suitable temperature ≤85℃
Pressure PN10,PN16, 150LB, 10K

Specification

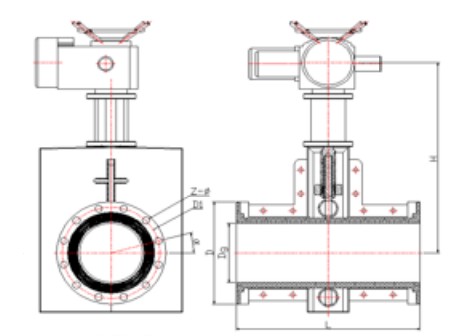

DN L H Dg D1 D Z-0 a
DN32 126 267 32 100 140 4-18 45"
DN50 180 298 50 125 165 4-18 45"
DN65 230 320 65 145 185 4-18 45"
DN80 280 344 80 160 200 8-18 22.5°
DN100 360 485 96 180 220 8-18 22.5
DN125 444 492 120 210 250 8-18 22.5"
DN150 500 495 145 240 285 8-22 22.5°
DN200 560 750 195 295 340 12-20 15"
DN250 630 870 245 355 405 12-26 15°
DN300 730 970 295 410 460 12-26 15°
DN350 890 1050 345 470 520 16-26 11.25°
