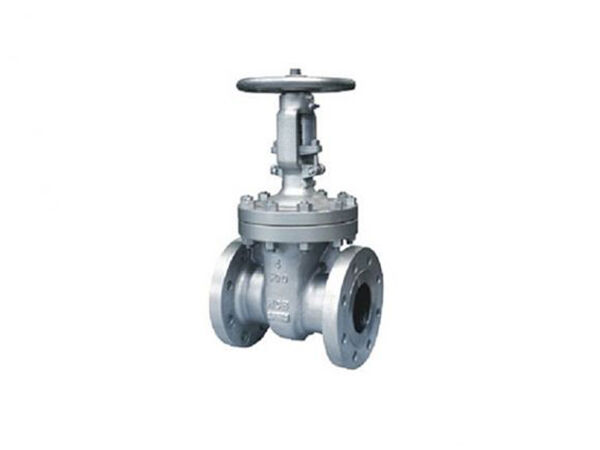

• API600 Class 300 OS&Y Cast Steel Gate Valve
API600 Class 300 OS&Y Cast Steel Gate Valve

1.Standard: API 602,BS5352,API 598/600
2.Pressure:1.0~2.5MPa
3.Size:DN50~DN600;1/2’’-24’’
4.Material:WCB,Bronze,Brass,Stainless steel
5.Type: Rising Stem, BB, FB, OS&Y
6.Operating temperature :0~80℃
7.Medium: water oil gas and so on
8.Operation: Hand Wheel. Gear Devices, Electric, Etc

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :
    ● Design and Manufacture  Conform to API 600
    ● Flange dimensions  Conform to ASME B16.5
    ● Face to Face  dimensions Conform to  ASME B16.10
    ● Testing Conform to API 598
    ● Driving mode: hand wheel, bevel gear, electric

Specification

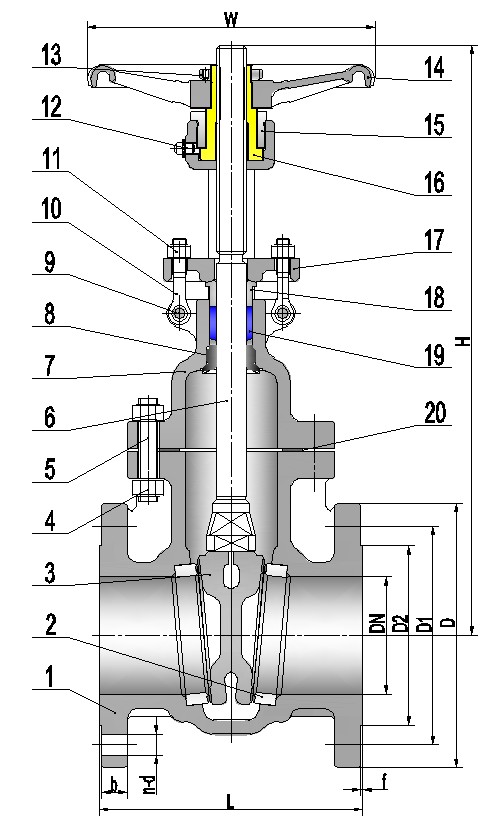

No. Part Name Material

Qingdao I-Flow Co., Ltd

1 Body A216-WCB
2 Seat Ring A105+CR13
3 Wedge A216-WCB+CR13
4 Bonnet Stud Nut A194-2H
5 Bonnet Stud A193-B7
6 Stem A182-F6a
7 Bonnet A216-WCB
8 Stem Back Seat A276-420
9 Eyebolt pin Carbon Steel
10 Eyebolt Carbon Steel
11 Eyebolt Nut Carbon Steel
12 Grease Fitting Brass+Steel
13 Handwheel Nut Carbon Steel
14 Handwheel Ductile Iron
15 Yokesleeve Jam nut Carbon Steel
16 Yokesleeve Bronze
17 Gland Flange A216-WCB
18 Gland A276-420
19 Packing Graphite
20 Bonnet Gasket Graphite+304



Dimensions data(mm)



NPS 2 2½ 3 4 5 6 8 10 12 14 16 18 20 24
L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508
D 152 178 191 229 254 279 343 406 483 533 597 635 699 813
D1 120.7 139.7 152.4 190.5 215.9 241.3 298.5 362 431.8 476.3 539.8 577.9 635 749.3
D2 92 105 127 157 186 216 270 324 381 413 470 533 584 692
b 14.4 16.4 17.9 22.4 22.4 23.9 26.9 28.9 30.2 33.9 35.4 38.4 41.4 46.4
n-d 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
f 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
H 345 387 430 513 583 648 790 935 1100 1200 1330 1480 1635 1935
W 200 200 250 250 300 300 350 400 450 500 500 600 600 650
