JIS F 7367 Bronze 5K rising stem type gate valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description

DESIGN STANDARD		JIS F 7367-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	1.05
	SEAT	0.7

Specification

6	HANDWHEEL	FC200
5	GASKET	NON-ASBESTES
4	STEM	C3771BD OR BE
3	DISC	BC6
2	BONNET	BC6
1	BODY	BC6
NO.	NAME OF PART	MATERIAL

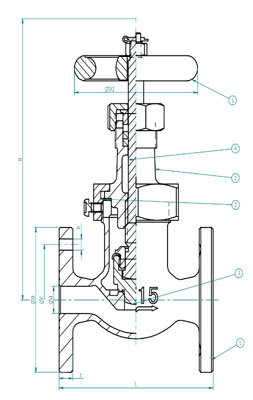

BRONZE 5K RISING STEM TYPE GATE VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	90	80	60	4	12	9	175	80
20	20	100	85	65	4	12	10	200	80
25	25	110	95	75	4	12	10	220	100
32	32	130	115	90	4	15	12	250	100
40	40	140	120	95	4	15	12	290	125

DN	d	L	D	C	NO.	h	t	H	D2
15	15	90	80	60	4	12	9	175	80
20	20	100	85	65	4	12	10	200	80
25	25	110	95	75	4	12	10	220	100
32	32	130	115	90	4	15	12	250	100
40	40	140	120	95	4	15	12	290	125

DN	d	L	D	C	NO.	h	t	H	D2
15	15	90	80	60	4	12	9	175	80
20	20	100	85	65	4	12	10	200	80
25	25	110	95	75	4	12	10	220	100
32	32	130	115	90	4	15	12	250	100
40	40	140	120	95	4	15	12	290	125

DN	d	L	D	C	NO.	h	t	H	D2
15	15	90	80	60	4	12	9	175	80
20	20	100	85	65	4	12	10	200	80
25	25	110	95	75	4	12	10	220	100
32	32	130	115	90	4	15	12	250	100
40	40	140	120	95	4	15	12	290	125
