JIS F 7333 Cast iron hose valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description

DESIGN STANDARD		JIS F 7319-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	DODY	5K	1.05
		10K	2.1
	SEAT	5K	0.77
		10K	1.54

Specification

8	HANDWHEEL	FC200
7	GASKET	NON-ASBESTES
6	PACKING GLAND	BC6
5	STEM	SUS403
4	VALVE SEAT	SCS2
6	DISC	SCS2
2	BONNET	SC480
1	BODY	SC480
NO.	NAME OF PART	MATERIAL

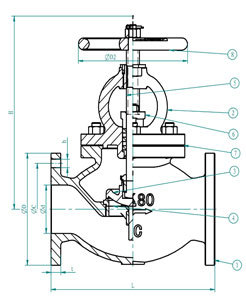

CAST STEEL 10K GLOBE VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	4	19	16	270	160
65	65	270	175	140	4	19	18	300	200
80	80	300	185	150	8	19	18	310	200
100	100	350	210	175	8	19	18	355	250
125	125	420	250	210	8	23	20	415	280
150	150	490	280	240	8	23	22	470	315
200	200	570	330	290	12	23	22	565	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	4	19	16	270	160
65	65	270	175	140	4	19	18	300	200
80	80	300	185	150	8	19	18	310	200
100	100	350	210	175	8	19	18	355	250
125	125	420	250	210	8	23	20	415	280
150	150	490	280	240	8	23	22	470	315
200	200	570	330	290	12	23	22	565	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	4	19	16	270	160
65	65	270	175	140	4	19	18	300	200
80	80	300	185	150	8	19	18	310	200
100	100	350	210	175	8	19	18	355	250
125	125	420	250	210	8	23	20	415	280
150	150	490	280	240	8	23	22	470	315
200	200	570	330	290	12	23	22	565	355

DN	d	L	D	C	NO.	h	t	H	D2
50	50	220	155	120	4	19	16	270	160
65	65	270	175	140	4	19	18	300	200
80	80	300	185	150	8	19	18	310	200
100	100	350	210	175	8	19	18	355	250
125	125	420	250	210	8	23	20	415	280
150	150	490	280	240	8	23	22	470	315
200	200	570	330	290	12	23	22	565	355
