JIS F 7308 Cast iron 10K Angle valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7308-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	≤200	2.1
		≥250	1.5
	SEAT	≤200	1.54
		≥250	1.1

Specification

8	HANDWHEEL	FC200
7	GASKET
6	PACKING GLAND	BC6
5	STEM	C3771BD OR BESUS 403
4	VALVE SEAT	BC6	SCS2
3	DISC	BC6	SCS2
2	BONNET	FC200
1	BODY	FC200
NO.	NAME OF PART	CLASS B	CLASS S
		MATERIAL
CAST IRON 10K GLOBE VALVES

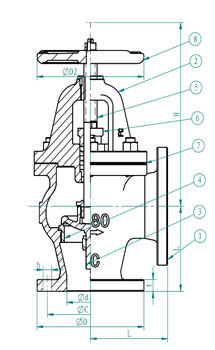

Dimensions data(mm)

DN	D	L	D	C	NO.	H	T	H
50	50	120	130	105	4	15	16	299
65	65	150	155	130	4	15	18	341
80	80	160	180	145	4	19	18	375
100	100	190	200	165	8	19	20	441
10K50	50	120	155	120	4	19	20	299
10K65	65	150	175	140	4	19	22	341
10K80	80	160	185	150	8	19	22	375
10K100	100	190	210	175	8	19	24	441
