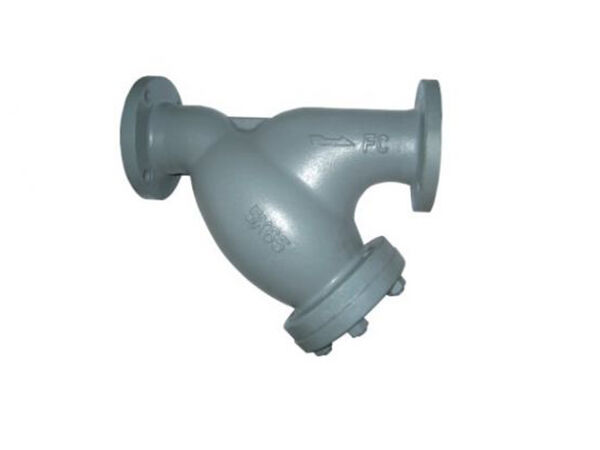

JIS F 7220 Cast iron Y type strainer



Position: HOME > PRODUCTS > Marine > JIS Marine Valve > JIS F 7220 Cast iron Y type strainer

JIS F 7220 Cast iron Y type strainer

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7220-1996
TEST		JIS F 7200-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	1.05

Specification

4	GASKET
3	STRAINER	SUS304
2	BONNET	FC200
1	BODY	FC200
NO.	NAME OF PART	MATERIAL
CAST IRON Y TYPE STRAINER

Dimensions data(mm)

DN	D	L	D	C	NO.	H	T	H
20	20	200	85	65	4	12	14	127
25	25	225	95	75	4	12	14	155
32	32	260	115	90	4	15	16	164
40	40	280	120	95	4	15	16	180
50	50	320	130	105	4	15	16	208
65	65	350	155	130	4	15	18	253
80	80	373	180	145	4	19	18	268
100	100	390	200	165	8	19	20	286
125	125	410	235	200	8	19	20	295
150	150	430	265	230	8	19	20	318

DN	D	L	D	C	NO.	H	T	H
20	20	200	85	65	4	12	14	127
25	25	225	95	75	4	12	14	155
32	32	260	115	90	4	15	16	164
40	40	280	120	95	4	15	16	180
50	50	320	130	105	4	15	16	208
65	65	350	155	130	4	15	18	253
80	80	373	180	145	4	19	18	268
100	100	390	200	165	8	19	20	286
125	125	410	235	200	8	19	20	295
150	150	430	265	230	8	19	20	318
