• JIS F 7121 Shipbuilding-Can water filter
JIS F 7121 Shipbuilding-Can water filter

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure：5K,10K,16K
Size: DN25-DN100
Material：Cast iron, ductile iron
Type: Globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US
Description
Specification
Related Products
Inquiry

Description

DESIGN STANDARD JIS F 7121-1996
TEST JIS F 7200-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA BODY 0.3



Specification

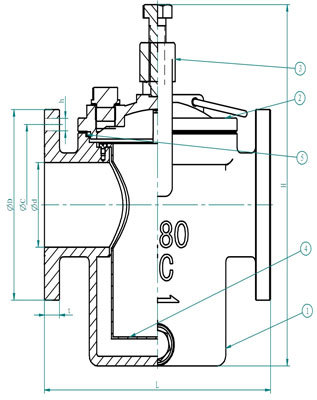

5 GASKET

Qingdao I-Flow Co., Ltd

4 STRAINER SUS 304
3 COVER PUSH FCD400
2 BONNET FC200
1 BODY FC200
NO. NAME OF PART MATERIAL
SHIPBUILDING-CAN WATER FILTER




Dimensions data(mm)



DN D L D C NO. H T H
25 25 170 95 75 4 12 14 191
32 32 190 115 90 4 15 16 218
40 40 190 120 95 4 15 16 218
50 50 200 130 105 4 15 16 239
65 65 250 155 130 4 15 18 306
80 80 270 180 145 4 19 18 341
100 100 320 200 165 8 19 20 401
