• JIS F 3019 Self-closing Gate Valve Heads for Sounding Pipe
JIS F 3019 Self-closing Gate Valve Heads for Sounding Pipe

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410

Pressure:5K,10K,16K
Size: DN40-DN50
Material:Brass,bronze
Type: globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Description

DESIGN STANDARD JIS F 3019-1996

Qingdao I-Flow Co., Ltd

TEST JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA BODY 0.3
SEAT 0.2

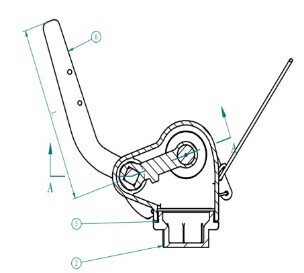

Specification

6 HANDWHEEL BC6

Qingdao I-Flow Co., Ltd

5 GASKET
4 STEM C3771BD OR BE
3 DISC BC6
2 BONNET BC6
1 BODY BC6
NO. NAME OF PART MATERIAL
SELF-CLOSING GATE VALVE HEADS FOR SOUDING PIPE



Dimensions data(mm)



DN D D4 H1 L
40 G11/2 G11/2 54 160
50 G2 G2 60 160
