JIS7371 Bronze swing check valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7371-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	5K	1.05
		10K	2.1
	SEAT	5K	0.77-0.4
		10K	1.54-0.4

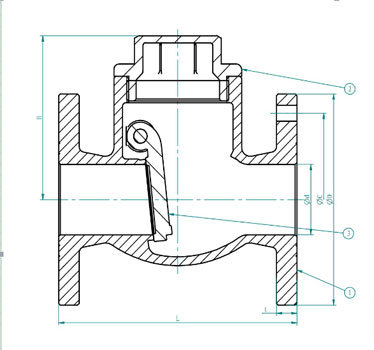

Specification

3	DISC	BC6
2	BONNET	BC6
1	BODY	BC6
NO.	NAME OF PART	MATERIAL
BRONZE SWING CHECK VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H
5K15	15	110	80	60	4	12	10	69
5K20	20	110	85	65	4	12	10	69
5K25	25	110	95	75	4	12	10	69
5K32	32	130	115	90	4	15	12	79
5K40	40	140	120	95	4	15	12	93
10K15	15	110	95	70	4	15	10	69
10K20	20	110	100	75	4	15	10	69
10K25	25	110	125	90	4	19	10	69
10K32	32	130	135	100	4	19	12	79
10K40	40	140	140	105	4	19	12	93
