• Class 150 bronze 10K globe valves openclose indicator
Class 150 bronze 10K globe valves openclose indicator

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure:5K,10K,16K
Size:DN15-DN300
Material:cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Description

DESIGN STANDARD

TEST JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA BODY 2.1
SEAT 1.54

Specification

5 HANDWHEE FC200

Qingdao I-Flow Co., Ltd

4 STEM C3771BD OR BE
3 DISC C3771BD OR BE
2 BONNET C3771BD OR BE
1 BODY BC6
NO. NAME OF PART MATERIAL

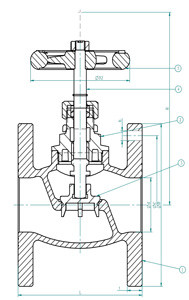

CLASS 150 BRONZE 10K SNDR VALVES OPEN/CLOSE INDECATOR




Dimensions data(mm)



DN d L D C NO. h t H D2
15 15 60 95 70 4 12 8 75.5 50
20 20 70 100 75 4 15 9 82.5 65
25 25 80 125 90 4 19 10 88.5 65
32 32 100 135 100 4 19 11 109 80
40 40 100 140 105 4 19 12 121 80
50 50 120 155 120 4 19 13 142 100
65 65 140 175 140 4 19 13 154 125
