200PSI-NRS Type Grooved End Gate Valve

1.Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150
2.Connection type: flange type,groove type
3.Material:CI,DI,STAINLESS STAIN
4.Size: 2" - 12"
5.Pressure grade: 200PSI-300PSI
6.Type:OS&Y,NRS,with plate
UL/FM approval

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

TECHNICAL REQUIREMENT :

● Design and Manufacture Conform to AWWA C515

● Flange to ANSI B16.1 Class 125.Other flange types available

● Fusion bonded epoxy coated inside and out

● Testing Conform to AWWA C515

● Norminal Pressure:200PSI

●Groove Standard:Metric or AWWA C606

Specification

No.	Part Name	Material
1	Body	ASTM A536 65-45-12
2	Wedge	ASTM A536 65-45-12+EPDM
3	Wedge Nut	ASTM B148 C95400
4	Gasket	EPDM
5	Stem	ANSI 420
6	Bonnet	ASTM A536 65-45-12
7	Retainer Ring	ASTM B62
8	O-Ring	EPDM
9	Square Operating Nut	ASTM A536 65-45-12
10	Flat Gasket	ANSI 1045
11	Lock Nut	ANSI 1035
12	Bolt	ANSI 1035
13	Nut	ANSI 1035
14	Washer	ANSI 1035
15	Round Plate	ASTM A536 65-45-12
16	Gland	ASTM A536 65-45-12
17	Bonnet Bolt	ANSI 1035
18	Plug Screw	ASTM B62

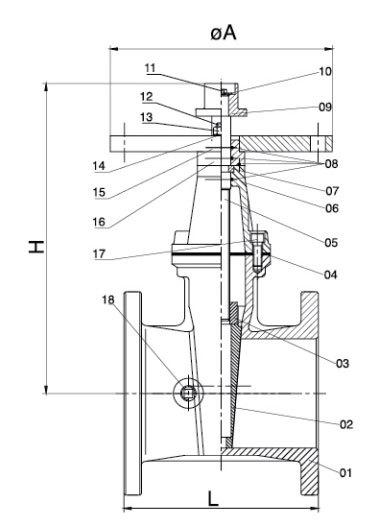

Dimensions data(mm)

Size	2½"	3"	4"	5"	6"	8"	10"	12"
Dn	65	80	100	125	150	200	250	300
L	190	203	229	254	267	292	330	356
H	255	289	323	386	420	520	628	725
ΦD1	76.1	88.9	114.3	141.3	168.3	219.1	273	323.9
ΦE	72.3	84.9	110.1	137	163.9	214.4	268.3	318.3
ΦA	305	305	305	305	305	305	305	305
F	15.9	15.9	15.9	15.9	15.9	19	19	19
