Bevel Gear Actuator

Tel: +86-532-66952179/66952180

E-mail: info@qdiflow.com

Description

The gear actuator can be installed directly on the gate valve,globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. lt can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor gange,double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

Qingdao I-Flow Co., Ltd


Specification

Model

MY-VS10

MY-VS20

MY-V0

MY-V1

MY-V2

MY-V3

MY-V35

MY-V5

MY-V6

Tachnical-parameters

 Ratio

2.3:1

2.35:1

3.1:1

3.6:1

4:1

4.1:1

5:1

6.3;1

7.1:1

  Max-thrust

N

75500

113000

127000

141000

190000

288000

352000

521000

1110000



Kgf

7690

11500

12900

14400

19400

29400

35900

52200

113000

  Max-torque

N·m

216

363

589

932

1491

2296

3404

8500

12500



Kgf·m

22

37

60

95

152

234

347

459

740


Max-stem dia.Mm

20

25

28

40

52

60

70

100

120

 Weight Kg

10

12

21.5

28

35

50

95.5

190

288

Connect ion-size

FLANGE

F10

F12

F14

F16

F(20)

F25

F30

F35

F40

 Flange Excircle(D)

125

150

175

210

250

300

350

415

475

 Connecting Hole
PCD

D0

102

125

140

165

205

254

298

356

406

N-H-DP

4-M10-15

4-M12-18

4-M16-24

8-M20-30

8-M16-24

8-M16-24

8-M20-30

8-M30-45

8-M36-54

 Convex(D1×h)

70 × 3

85 ×3

100 ×4

130 × 4

140 × 5

200 × 5

230 ×5

260 ×5

300 × 8

 Electrical connectedPD×b(key)

PDB×(key)

30 × 8

30 × 8

35 × 10

35 × 10

40 × 12

40 × 12

45 × 14

45 × 14

50 × 14

L0

55

55

60

60

60

60

65

65

70

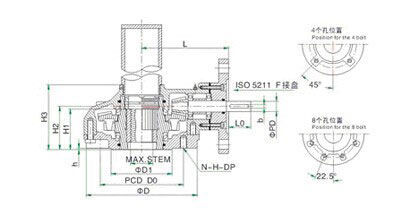

Appearance-size

    H1

38

46

55

62

75

85

105

145

165

    H2

65

70

70

75

90

100

140

155

210

    H3

110

125

128

145

160

170

225

280

335

    L

160

175

200

220

240

265

320

395

405



Bevel gear combination of parameters and electrical equipment

Denso Parameters

Model

IK5210

IK5215

IK5220

IK5230

IK5345

IK5360

IK5490

IK5412

IK5518

Torque Nm

100

150

200

300

450

600

900

1200

1800

Speed r/min

18/24

18/24

18/24

18/24

24/48

24/48

24/48

18/24

24/36

FlangeGB/T12222-2005

F10

F10

F14

F14

F16

F16

F25

F25

F30



Torque Nm

185

285

480

864

1450

1920

3600

6050

10200
