In modern industrial automation, pneumatic systems are trusted for their reliability, speed, and cost-effectiveness. At the heart of these systems lie pneumatic valves—critical components that control the direction, pressure, and flow rate of compressed air. Selecting the right pneumatic valve is not just a technical decision; it’s a strategic one that directly impacts your productivity, maintenance costs, and process efficiency.

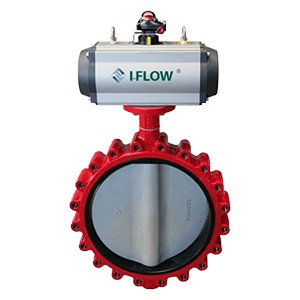

 What Are Pneumatic Valves

Pneumatic valves are mechanical or electromechanical devices that regulate the flow of compressed air within a pneumatic system. Their functions include:

• Starting or stopping air flow

• Controlling the direction of flow

• Regulating air pressure and flow rate

They’re used in a wide range of industries including automotive, packaging, food and beverage, pharmaceuticals, material handling, and robotics.

Key Types of Pneumatic Valves

1. Directional Control Valves (DCVs)

These valves control the path of airflow. Common configurations include:

• 2/2 valve: 2 ports, 2 positions (on/off)

• 3/2 valve: 3 ports, 2 positions (used to control single-acting cylinders)

• 5/2 and 5/3 valves: 5 ports, 2 or 3 positions (ideal for double-acting cylinders)

2. Flow Control Valves

Regulate the speed of actuators by controlling the airflow rate. Often used with cylinders.

3. Pressure Control Valves

Maintain or limit pressure within a system. Types include:Pressure regulators.Relief valves.Sequence valves

4. Solenoid Valves

Electrically actuated directional valves that offer precise control and remote operation.

5. Manual or Mechanical Valves

Operated by a lever, push button, or mechanical actuator—ideal for low-cost, hands-on processes.

Factors to Consider When Selecting a Pneumatic Valve

✅ 1. Application Requirements

• What function will the valve serve? (on/off, flow direction, speed control)

• How often will it operate per minute/hour?

✅ 2. Valve Size and Flow Rate (Cv)

Ensure the valve can deliver adequate airflow (measured in SCFM or Cv). Undersized valves restrict performance; oversized valves waste energy and space.

✅ 3. Actuation Method

• Manual: Push-button or lever

• Mechanical: Cam or roller-operated

• Electric: Solenoid-activated

• Pneumatic: Air pressure controls the valve

✅ 4. Port Size and Type

Match the valve’s port connections to your system’s piping. Common sizes: 1/8", 1/4", 3/8", 1/2", etc. Thread types include NPT, BSP, or push-to-connect.

✅ 5. Operating Pressure Range

Check both minimum and maximum pressure ratings. Industrial systems usually run between 60–120 psi.

✅ 6. Cycle Rate and Life Expectancy

High-speed applications (like packaging lines) need valves with quick response times and long service life.

✅ 7. Environmental Conditions

• Temperature extremes

• Moisture or dust

• Cleanroom or hygienic environments

• Outdoor exposure

Use stainless steel valves or sealed housings in harsh conditions.

✅ 8. Certifications and Compliance

For food, pharma, or explosive environments, ensure valves meet ISO, CE, FDA, or ATEX standards.

Common Problems If You Choose the Wrong Valve

Using the wrong pneumatic valve can result in:

• Slow actuator response

• Air leaks and inefficiency

• Valve sticking or jamming

• Increased downtime and maintenance

• Inability to meet cycle times

Investing time in proper selection reduces operating costs and improves system reliability.
