In this comprehensive guide, we’ll walk through the complete fire sprinkler installation process, the most important testing procedures, and why staying compliant with fire codes like NFPA 13 is crucial for protecting people, property, and profits.

Fire Sprinkler System Installation: How It’s Done

1. Site Assessment and Risk Analysis

• Fire hazards by area or room use

• Ceiling heights and room geometry

• Existing water supply capacity and pressure

• Applicable codes (NFPA 13, local fire safety codes)

This assessment determines the type of sprinkler system required (wet, dry, pre-action, or deluge).

2. Design and Hydraulic Calculations

• Sprinkler head placement for 100% coverage

• Pipe diameters and routing

• Hydraulic calculations for water pressure and flow

• Location of main control valves, backflow preventers, alarms, and test points

The design must be submitted to the local fire marshal or building authority for permit approval.

3. Material Procurement and On-Site Preparation

Installers order pipes (usually steel, copper, CPVC, or PEX), valves, sprinkler heads, hangers, control systems, and alarms. Materials must meet UL/FM standards. The site is prepared for drilling, pipe mounting, and access to risers and water lines.

4. System Installation

• Connecting to the municipal water main or installing a water storage tank/pump if needed

• Installing main and branch piping across ceilings or walls

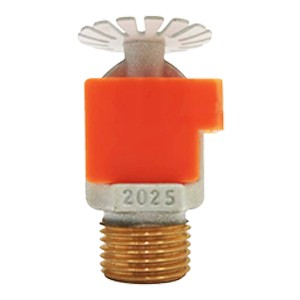

• Mounting sprinkler heads based on hazard classification

• Installing flow switches, pressure gauges, and control valves (alarm valve, check valves, zone valves)

5. System Integration and Functional Checks

• Electrical continuity of alarms and tamper switches

• Operation of remote monitoring systems

• Accessibility of control panels and drain/test valves

Fire Sprinkler Testing: What It Involves and Why It Matters

1. Hydrostatic Pressure Testing

Required by NFPA 13, this test ensures the pipe network can hold pressure without leaks. Procedure:

• Fill the system with water

• Pressurize to 200 psi or 50 psi above max working pressure

• Maintain for 2 hours, watching for drops in pressure

• Any leakage results in a failed test and required rework

2. Main Drain and Flow Testing

This simulates sprinkler activation to verify water delivery. It includes:

• Opening the main drain valve

• Measuring flow and pressure drop

• Confirming the alarm system triggers as expected

• Checking for obstructions or water discoloration (a sign of corrosion)

3. Alarm and Supervision System Testing

Flow switches and pressure alarms must be tested by:

• Activating a test valve to mimic head discharge

• Ensuring alarms, strobe lights, or system notifications activate within 90 seconds

• Verifying monitoring company receives alarm signal

4. Trip Testing for Dry Systems

For dry pipe systems (used in cold climates), water is held back from the pipes until a sprinkler head activates. A trip test confirms:

• How long it takes for water to reach the most remote sprinkler

• That internal air pressure drops and water flows within allowable times (typically under 60 seconds)
