Needle Valve VS Ball Valve
2025-06-11

When designing or maintaining fluid control systems, selecting the right valve is crucial for performance, safety, and longevity. Two popular options—needle valves and ball valves—serve distinct purposes despite both managing flow. This article breaks down their design, function, advantages, and ideal applications to help you choose the right one.

What Is a Needle Valve

A needle valve is a type of valve that allows precise regulation of flow. It uses a slender, tapered, needle-like plunger to gradually open or close a passage. These valves are ideal for fine flow control in low-pressure systems.

Key Features:

  • Threaded stem for gradual movement

  • Excellent for small flow rates

  • Used in metering fluids or gases

  • Commonly made of stainless steel or brass

Typical Applications:

  • Laboratory instruments

  • Hydraulic systems

  • Fuel regulation

  • Sampling lines

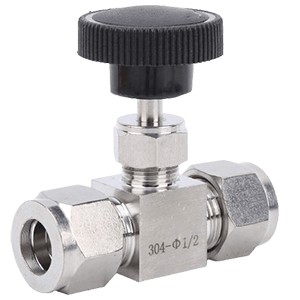

needle valve


What Is a Ball Valve

A ball valve uses a rotating ball with a bore through its center to open or block flow. Ball valves are known for quick shutoff, durability, and minimal pressure drop.

Key Features:

  • Quarter-turn operation

  • Full bore or reduced bore options

  • High flow capacity

  • Long service life with minimal maintenance

Typical Applications:

  • Water and gas distribution

  • Chemical pipelines

  • HVAC systems

  • Industrial automation

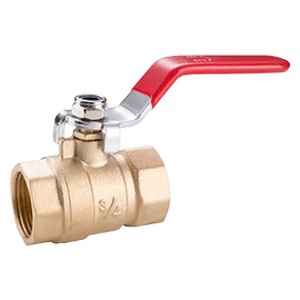

ball valve

Key Differences Between Needle and Ball Valves

FeatureNeedle ValveBall Valve
Flow Control PrecisionHigh – ideal for meteringLow – on/off control
OperationMulti-turn handleQuarter-turn handle
Flow CapacityLowHigh
Shutoff CapabilitySlow, preciseFast, tight shutoff
Pressure RatingUsually lowerCan handle high pressure
MaintenanceModerateLow

When to Use Each Valve

Choose a needle valve when:You need accurate flow regulation.The flow rate is low and precision is critical.You're dealing with gases or light fluids

Choose a ball valve when:You need fast shutoff.The fluid system requires high flow rates.You want a robust, low-maintenance solution
