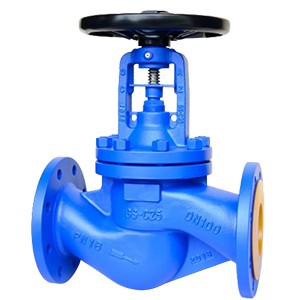

What Is a Globe Valve and When Should You Use One

A globe valve is a linear motion valve designed to start, stop, and regulate fluid flow. The internal structure forces fluid to change direction within the valve body, resulting in a pressure drop—but offering superior throttling capability. It is particularly suitable for applications requiring:

• Precise flow regulation

• Tight shutoff

• Frequent operation

• High-temperature and high-pressure endurance

Step 1: Define Your Application Requirements

Every application is unique. The first and most critical step in globe valve selection is understanding the specific service conditions.Documenting these parameters helps narrow down material, design, and actuation choices.

• Media Type: Is the valve handling steam, gas, water, oil, corrosive chemicals, or slurries?

• Temperature and Pressure: What are the operating and maximum pressure-temperature conditions?

• Flow Control Needs: Is the valve used for throttling, isolation, or both?

• Installation Environment: Indoor, outdoor, corrosive, marine, or cleanroom?

Step 2: Select the Appropriate Body Design

T-Pattern (Z-Body) Globe Valve

• Most common and cost-effective

• High pressure drop

• Ideal for throttling service in low-to-moderate pressure systems

Y-Pattern Globe Valve

• Streamlined body reduces pressure drop

• Suitable for high-pressure and high-temperature applications

• Often used in power plants and high-pressure steam lines

Angle Pattern Globe Valve

• Allows 90° turn in piping

• Simplifies layout and minimizes fittings

• Used in pulsating flow or high-slurry content applications

Selecting the proper body type ensures operational efficiency and longer valve service life.

Step 3: Choose the Right Materials

Material compatibility is crucial for durability and safety. Match body, trim, and seat materials to your media and operating conditions:

Step 4: Understand Pressure Class and Standards

• ANSI/ASME Pressure Classes: 150, 300, 600, etc.

• DIN PN Ratings: PN16, PN25, PN40, etc.

• Certifications: API 623, ISO 9001, CE, WRAS, or marine approvals like DNV and ABS

Confirming these ratings protects your system from failure and meets regulatory compliance.

Step 5: Consider End Connections

• Flanged: For high-pressure, easy maintenance

• Threaded: For smaller, low-pressure systems

• Socket Weld / Butt Weld: For permanent, leak-proof installations in critical systems

Step 6: Decide on Manual or Automated Operation

• Manual Globe Valves: Operated via handwheel—ideal for low-cycle applications.

• Electric Actuators: Used in automated control systems with remote access.

• Pneumatic Actuators: Preferred in systems requiring rapid actuation and where compressed air is available.

Step 7: Evaluate Total Cost of Ownership (TCO)

• Installation cost

• Maintenance frequency

• Spare parts availability

• Energy efficiency (related to pressure drop)

Well-designed valves may cost more upfront but save significantly in lifecycle cost.
