Design & Flow Characteristics

Globe Valve

• Internal Structure: Features a plug (disc) that moves perpendicularly to the flow.

• Flow Path: Fluid changes direction inside the valve, leading to higher turbulence.

• Result: Greater pressure drop, but ideal for flow regulation and throttling.

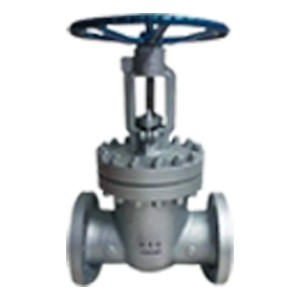

Gate Valve

• Internal Structure: Uses a wedge or gate that lifts vertically to allow straight-through flow.

• Flow Path: Minimal disruption; fully open valve creates near-zero resistance.

• Result: Ideal for on/off flow, not suitable for throttling.

Functionality Comparison

Pressure Drop & Flow Resistance

• Globe Valve: Due to multiple changes in flow direction, the pressure drop is significant. Use where flow control is more important than energy efficiency.

• Gate Valve: Offers minimal pressure loss when fully open, ideal for gravity-fed pipelines and systems that demand low resistance.

Maintenance & Durability

Globe Valve

• Pros: Easy to service, ideal for high-pressure, high-cycle environments.

• Cons: More internal components = more potential wear over time.

Gate Valve

• Pros: Simple internal mechanism, long-lasting if rarely operated.

• Cons: Can seize or corrode if left partially open for long periods.

Installation Guidelines

• Globe Valves: Can be installed in various orientations depending on flow direction; need extra space due to stem and actuator design.

• Gate Valves: Require vertical stem clearance but are more compact in some horizontal pipelines.

Application Scenarios

Cost Considerations

• Gate Valves

  • Lower initial cost

  • Simpler construction

  • Less suitable for frequent operation or throttling

• Globe Valves

  • Greater long-term control and efficiency

  • Higher pressure drop

  • Slightly more expensive upfront

Key Takeaway

Choose a globe valve when

• You need precise flow control.

• System pressure and flow need to be modulated.

• The valve will cycle frequently.

Choose a gate valve when

• You need basic on/off isolation.

• System must maintain pressure or minimize energy loss.

• Valve operation will be infrequent.
