BS5153 PN16 Cast Iron Swing Check Valve

1.size:DN50-DN600;2’’-24’’

2.Medium:water

3.Standard:EN12334/BS5153/MSS SP-71/AWWA C508

4.Pressure:CLASS 125-300/PN10-25/200-300PSI

5.Material:CI,DI

6.Type:wafer,swing

Tel: +86-532-66952179/66952180

E-mail: qdiflow@qdiflow.com

Chat Now

Message

PRODUCTS

Tel: +86- 532- 66952176

Email: qdiflow@qdiflow.com

Fax: +86-532-66952181

Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.

Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China

Description

TECHNICAL REQUIREMENT :
    ● Design and Manufacture Conform to EN12334、BS5153
    ● Flange dimensions Conform to EN1092-2 PN16
    ● Face to Face dimensions Conform to EN558-1 List 10、BS5153
    ● Testing Conform to EN12266-1
    ● CI-GREY CAST IRON , DI-DUCTILE IRON

Specification

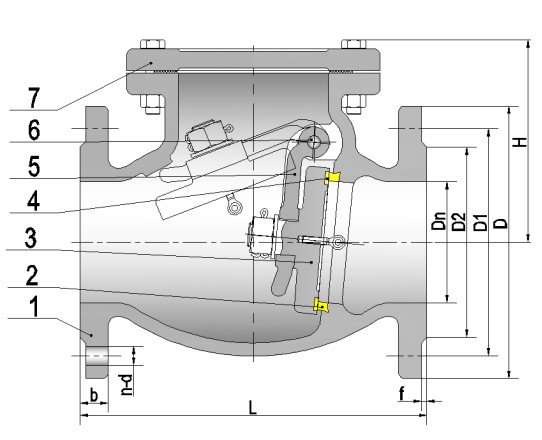

Materials of parts

No.

Part Name

Material

BODY

EN-GJL-250/EN-GJS-500-7

SEAT RING

ASTM B62 C83600

DISC

EN-GJL-250/EN-GJS-500-7

DISC RING

ASTM B62 C83600

HINGE

ASTM A536 65-45-12

STEM

ASTM A276 410

BONNET

EN-GJL-250/EN-GJS-500-7

NOTE: Above DN150 have eyebolt

Dimensions data(mm)

100

125

150

200

250

300

350

400

450

500

600

203

216

241

292

330

356

495

622

699

787

914

965

1016

1219

165

185

200

220

250

285

340

405

460

520

580

640

715

840

400

455

125

145

160

180

210

240

295

355

410

470

525

585

650

770

118

132

156

184

211

266

319

370

429

480

548

609

720

24.5

26.5

31.5

n-d

4-19

8-19

8-23

12-23

12-28

16-28

16-31

20-31

20-34

20-37

124

129

153

170

196

259

332

383

425

450

512

702

755

856
