• EN593 PN10/16/U Type Flange Butterfly Valve
EN593 PN10/16/U Type Flange Butterfly Valve

1.size:DN40-DN600;2’’-24’’
2.Medium:water
3.Standard:EN593/AWWA C504/MSS SP-67
4.Pressure:CLASS 125-300/PN10-25/200-300PSI
5.Material:CI,DI
6.Type:wafer type,lug type,double flange type,U type,groove-end

Tel: +86-532-66952179/66952180

E-mail: qdiflow@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US
Tel: +86- 532- 66952176
Email: qdiflow@qdiflow.com
Fax: +86-532-66952181
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China
Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :
    ● Design and Manufacture  Conform to EN593
    ● Flange dimensions  Conform to EN1092-2/ANSI B16.1
    ● Face to Face  dimensions Conform to EN558-1
    ● Testing Conform to  EN12266-1
    ● Driving mode: lever, worm actuator, electric, pheumatic

Specification

NO. Part Name Material Optional Material


1 Body DI CI, WCB, Stainless Steel
2 O Ring NBR EPDM, FKM
3 Bushing PTFE
4 Pin ASTM A276 416 316, 17-4PH
5 Shaft ASTM A276 416 316, 17-4PH
6 Disc Plated Ductile Iron ASTM A351 CF8/CF8M, B148 C954/C958
7 Seat NBR EPDM, FKM

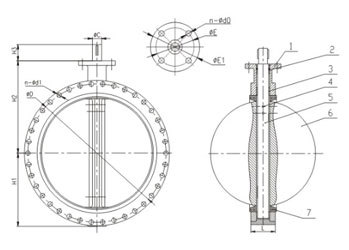

Dimensions data(mm)



SIZE L EN 1092-2 PN10 EN 1092-2 PN16 H1 H2 H3 ΦC ΦE1 ΦE n-Φd0
ΦD n-Φd1 ΦD n-Φd1
DN100 52 180 8-Φ19 180 8-Φ19 110 200 32 16 90 70 4-10
DN125 56 210 8-Φ19 210 8-Φ19 125 213 32 19 90 70 4-10
DN150 56 240 8-Φ23 240 8-Φ23 143 226 32 19 90 70 4-10
DN200 60 295 8-Φ23 295 12-Φ23 170 260 37 22 125 102 4-12
DN250 68 350 12-Φ23 355 12-Φ28 203 292 37 28 125 102 4-12
DN300 78 400 12-Φ23 410 12-Φ28 242 337 37 32 125 102 4-12
DN350 78 460 16-Φ23 470 16-Φ28 267 368 45 32 125 102 4-12
DN400 102 515 16-Φ28 525 16-Φ31 297 400 51 33 175 140 4-18
DN450 114 565 20-Φ28 585 20-Φ31 318 422 51 38 175 140 4-18
DN500 127 620 20-Φ28 650 20-Φ34 348 480 64 41 175 140 4-18
DN600 154 725 20-Φ31 770 20-Φ37 444 562 70 51 210 165 4-22
DN700 165 840 24-Φ31 840 24-Φ37 505 624 66 63 300 254 8-18
DN800 190 950 24-Φ34 950 24-Φ41 565 672 66 63 300 254 8-18
DN900 203 1050 28-Φ34 1050 28-Φ41 637 720 118 75 300 254 8-18
DN1000 216 1160 28-Φ37 1170 28-Φ44 700 800 142 85 300 254 8-18
DN1200 254 1380 32-Φ41 1390 32-Φ50 844 940 160 105 350 298 8-22
