API600 Class 600 OS&Y Cast Steel Gate Valve

1.Standard: API 602,BS5352,API 598/600
2.Pressure:1.0~2.5MPa
3.Size:DN50~DN600;1/2’’-24’’
4.Material:WCB,Bronze,Brass,Stainless steel
5.Type: Rising Stem, BB, FB, OS&Y
6.Operating temperature :0~80℃
7.Medium: water oil gas and so on
8.Operation: Hand Wheel. Gear Devices, Electric, Etc

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

TECHNICAL REQUIREMENT :

● Design and Manufacture Conform to API 600

● Flange dimensions Conform to ASME B16.5

● Face to Face dimensions Conform to ASME B16.10

● Testing Conform to API 598

● Driving mode: hand wheel, bevel gear, electric

Specification

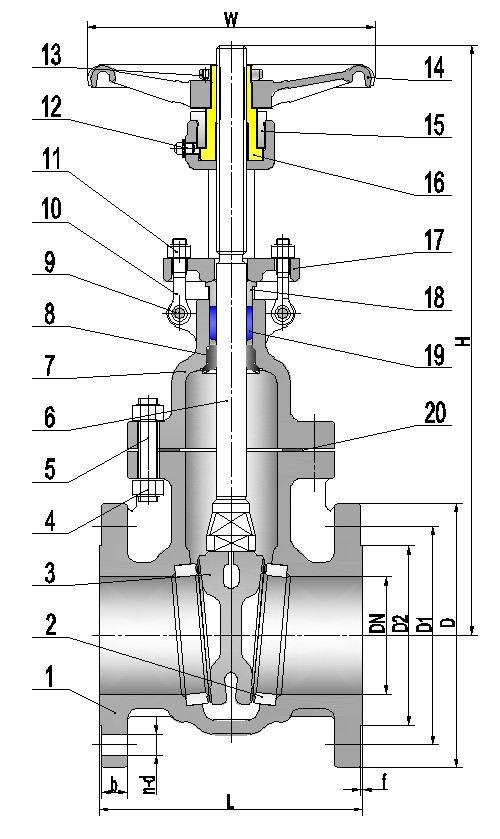

No.	Part Name	Material
1	Body	A216-WCB
2	Seat Ring	A105+CR13
3	Wedge	A216-WCB+CR13
4	Bonnet Stud Nut	A194-2H
5	Bonnet Stud	A193-B7
6	Stem	A182-F6a
7	Bonnet	A216-WCB
8	Stem Back Seat	A276-420
9	Eyebolt pin	Carbon Steel
10	Eyebolt	Carbon Steel
11	Eyebolt Nut	Carbon Steel
12	Grease Fitting	Brass+Steel
13	Handwheel Nut	Carbon Steel
14	Handwheel	Ductile Iron
15	Yokesleeve Jam nut	Carbon Steel
16	Yokesleeve	Bronze
17	Gland Flange	A216-WCB
18	Gland	A276-420
19	Packing	Graphite
20	Bonnet Gasket	Graphite+304

Dimensions data(mm)

NPS	2	2½	3	4	5	6	8	10	12	14	16	18	20	24
L	177.8	190.5	203.2	228.6	254	266.7	292.1	330.2	355.6	381	406	432	457	508
D	152	178	191	229	254	279	343	406	483	533	597	635	699	813
D1	120.7	139.7	152.4	190.5	215.9	241.3	298.5	362	431.8	476.3	539.8	577.9	635	749.3
D2	92	105	127	157	186	216	270	324	381	413	470	533	584	692
b	14.4	16.4	17.9	22.4	22.4	23.9	26.9	28.9	30.2	33.9	35.4	38.4	41.4	46.4
n-d	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25	12-29	16-29	16-32	20-32	20-35
f	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
H	345	387	430	513	583	648	790	935	1100	1200	1330	1480	1635	1935
W	200	200	250	250	300	300	350	400	450	500	500	600	600	650
