• API600 Class 2500 OS&Y Cast Steel Gate Valve
API600 Class 2500 OS&Y Cast Steel Gate Valve

1.Standard: API 602,BS5352,API 598/600
2.Pressure:1.0~2.5MPa
3.Size:DN50~DN600;1/2’’-24’’
4.Material:WCB,Bronze,Brass,Stainless steel
5.Type: Rising Stem, BB, FB, OS&Y
6.Operating temperature :0~80℃
7.Medium: water oil gas and so on
8.Operation: Hand Wheel. Gear Devices, Electric, Etc

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US

Tel: +86-532-66952179/66952180
Fax: +86-532-66952181
E-mail:info@qdiflow.com
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: Sangluoshu town,Huimin county,Binzhou,China

Description
Specification
Related Products
Inquiry

Description

Applicable Standards:

Design and Manufacture: API600

Face to Face and End to End: ASME B16.10

Flanged End: ASME B16.5/ASME B16.47

Butt Welded End: ASME B16.25

Test&Inspection: API598



Design Description:

Full bore design

Outside Screw and Yoke(OS&Y)

Bolted Bonnet(BB)

Flexible wedge,fully guided

Solid or split wedge gate

Renewable seat rings

Forged T-head stem

Rising stem and non-rising handwheel

Flanged or butt welding ends

Specification

NO. PART ASTM Material

Qingdao I-Flow Co., Ltd

WCB LCB WC6 CF8(M) CF3(M)
1 BODY A216 WCB A352 LCB A217 WC6 A351 CF8(M) A351 CF3(M)
2 GATE A216 WCB+13Cr A352 LCB+13Cr A217 WC6+STL A351 CF8(M) A351 CF3(M)
3 SEAT A105+13Cr A105+13Cr A217 WC6+STL A351 CF8(M)+STL6 A351 CF3(M)+STL6
4 STEM A182 F6 A182 F6 A182 F6 A182 F304/F316 A182 F304L/F316L
5 BONNET BOLT A193 B7 A320 L7 A193 B16 A193 B8(M) A193 B8(M)
6 BONNET NUT A194 2H A194 7 A194 4 A194 8(M) A194 8(M)
7 GASKET SS304+GRAPHITE PTFE/SS304+GRAPHITE PTFE/SS316+GRAPHITE
8 BONNET A216 WCB A352 LCB A217 WC6 A351 CF8(M) A351 CF3(M)
9 BACKSEAT A182 F6 A182 F6 A182 F6 - -
10 PACKING FLEXIBLE GRAPHITE PTFE/FLEXIBLE GRAPHITE
11 GLAND A182 F6 A182 F6 A182 F6 A182 F304 A182 F304L/F316L
12 GLAND FLANGE A216 WCB A352 LCB A217 WC6 A351 CF8(M) A351 CF3(M)
13 GLAND EYEBOLT A193 B7 A193 B8 A193 B8
14 NUT A194 2H A194 8 A194 8
15 PIN AISI 1025 AISI 1025
16 STEM NUT BRONZE BRONZE
17 HANDWHEEL NUT AISI 1035 AISI 1035
18 SCREW ASTM A36 ASTM A36
19 HANDWHEEL A536 60-40-18 A536 60-40-18
20 BEARING GLAND AISI 1035 AISI 1035
21 GREASE NIPPLE BRASS BRASS
22 NAMEPLATE SS304 SS304

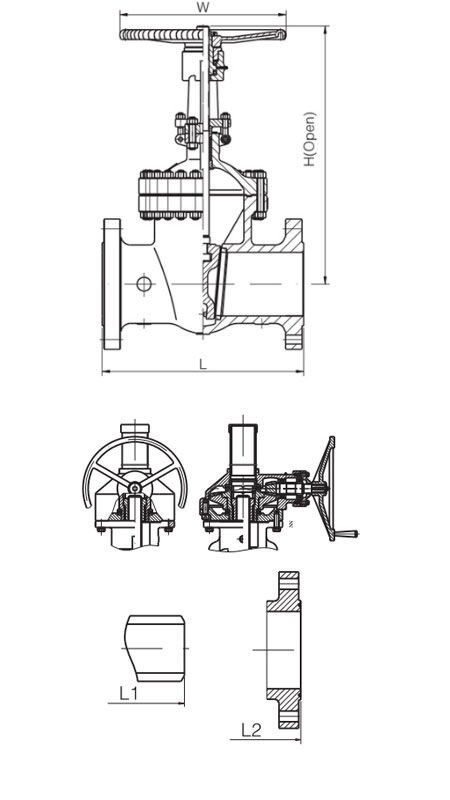

Dimensions data(mm)



Size in 2 21/2 3 4 6 8 10 12 14 16 18 20 24
mm 50 65 80 100 150 200 250 300 350 400 450 500 600
L/L1
(RF/BW)		 in 17.75 20 22.75 26.5 36 40.25 50 56 - - - - -
mm 451 508 578 673 914 1022 1270 1422 - - - - -
L2
(RTJ)		 in 17.88 20.5 23 26.88 36.5 10.88 50.88 56.88 - - - - -
mm 454 514 584 683 927 1038 1292 1445 - - - - -
H
(OPEN)		 in 21.88 29 35 41.5 57 63.38 81.75 89.75 - - - - -
mm 631 736 890 1055 1450 1610 2075 2280 - - - - -
D0 in 12 18 20 20 24 24 24 24 - - - - -
mm 300 450 500 500 600 600 600 600 - - - - -
WT
(Kg)		 RF/RTJ 155 210 310 580 1600 2450 4570 7150 - - - - -
BW 124 160 245 460 1310 2010 3800 6000 - - - - -
