JIS F 7373 Cast rion 10K swing check valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7373-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	2.1
	SEAT	1.54-0.4

Specification

5	GASKET	NON-ASBESTES
4	VALVE SEAT	BC6
3	DISC	BC6
2	BONNET	FC200
1	BODY	FC200
NO.	NAME OF PART	MATERIAL

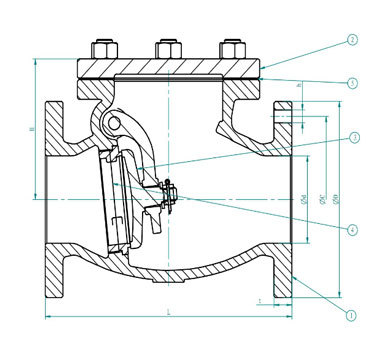

CAST IRON 10K SWING CHECK VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H
50	50	210	155	120	4	19	20	109
65	65	240	175	140	4	19	22	126
80	80	270	185	150	8	19	22	136
100	100	300	210	175	8	19	24	153
125	125	350	250	210	8	23	24	180
150	150	400	280	240	8	23	26	205
200	200	480	330	290	12	23	26	242

DN	d	L	D	C	NO.	h	t	H
50	50	210	155	120	4	19	20	109
65	65	240	175	140	4	19	22	126
80	80	270	185	150	8	19	22	136
100	100	300	210	175	8	19	24	153
125	125	350	250	210	8	23	24	180
150	150	400	280	240	8	23	26	205
200	200	480	330	290	12	23	26	242

DN	d	L	D	C	NO.	h	t	H
50	50	210	155	120	4	19	20	109
65	65	240	175	140	4	19	22	126
80	80	270	185	150	8	19	22	136
100	100	300	210	175	8	19	24	153
125	125	350	250	210	8	23	24	180
150	150	400	280	240	8	23	26	205
200	200	480	330	290	12	23	26	242

DN	d	L	D	C	NO.	h	t	H
50	50	210	155	120	4	19	20	109
65	65	240	175	140	4	19	22	126
80	80	270	185	150	8	19	22	136
100	100	300	210	175	8	19	24	153
125	125	350	250	210	8	23	24	180
150	150	400	280	240	8	23	26	205
200	200	480	330	290	12	23	26	242
