JIS F 7366 Cast steel 10K gate valves

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7366-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	2.1
	SEAT	1.54

Specification

9	DISC	SC450
8	HANDWHEEL	FC200
7	GASKET	NON-ASBESTES
6	PACKING GLAND	BC6
5	STEM	CA771BD	SUS403
4	VALVE SEAT	BC6	SCS2
3	VALVE SEAT	BC6	SCS2
2	BONNET	SC450
1	BODY	SC450
NO.	NAME OF PART	CLASS B	CLASS C
NO.	NAME OF PART	MATERIAL
CAST STEEL 10K GATE VALVE

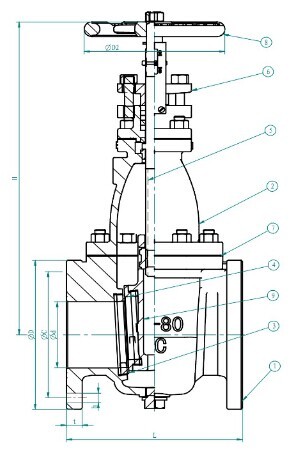

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	4	19	16	300	140
65	65	220	175	140	4	19	18	350	160
80	80	230	185	150	8	19	18	400	180
100	100	250	210	175	8	19	18	450	200
125	125	270	250	210	8	23	20	520	224
150	150	290	280	240	8	23	22	580	250
200	200	310	330	290	12	23	22	700	315
250	250	340	400	355	12	25	24	840	400
300	300	380	445	400	16	25	24	960	450

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	4	19	16	300	140
65	65	220	175	140	4	19	18	350	160
80	80	230	185	150	8	19	18	400	180
100	100	250	210	175	8	19	18	450	200
125	125	270	250	210	8	23	20	520	224
150	150	290	280	240	8	23	22	580	250
200	200	310	330	290	12	23	22	700	315
250	250	340	400	355	12	25	24	840	400
300	300	380	445	400	16	25	24	960	450

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	4	19	16	300	140
65	65	220	175	140	4	19	18	350	160
80	80	230	185	150	8	19	18	400	180
100	100	250	210	175	8	19	18	450	200
125	125	270	250	210	8	23	20	520	224
150	150	290	280	240	8	23	22	580	250
200	200	310	330	290	12	23	22	700	315
250	250	340	400	355	12	25	24	840	400
300	300	380	445	400	16	25	24	960	450

DN	d	L	D	C	NO.	h	t	H	D2
50	50	200	155	120	4	19	16	300	140
65	65	220	175	140	4	19	18	350	160
80	80	230	185	150	8	19	18	400	180
100	100	250	210	175	8	19	18	450	200
125	125	270	250	210	8	23	20	520	224
150	150	290	280	240	8	23	22	580	250
200	200	310	330	290	12	23	22	700	315
250	250	340	400	355	12	25	24	840	400
300	300	380	445	400	16	25	24	960	450
