JIS7368 Bronze rising stem gate valve

Standard: JIS F7301,7302,7303,7304,7351,7352,7409,7410
Pressure：5K,10K，16K
Size:DN15-DN300
Material：cast iron,cast steel,forged steel,brass,bronze
Type:globe valve,angle valve,
Media: Water,Oil,Steam

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

DESIGN STANDARD		JIS F 7368-1996
TEST		JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA	BODY	2.1
	SEAT	1.54

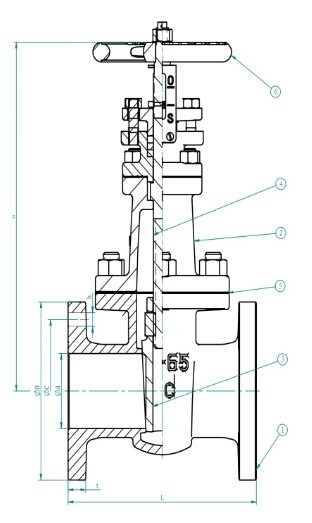

Specification

6	HANDWHEEL	FC200
5	GASKET	NON-ASBESTES
4	STEM	CA771BD OR BE
3	DISC	BC6
2	BONNET	BC6
1	BODY	BC6
NO.	NAME OF PART	MATERIAL
BRONZE 10K RISING STEM TYPE GATE VALVE

Dimensions data(mm)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	100	95	70	4	15	12	175	80
20	20	110	100	75	4	15	14	200	80
25	25	120	125	90	4	19	14	220	100
32	32	140	135	100	4	19	16	250	100
40	40	150	140	105	4	19	16	290	125
50	50	200	155	120	4	19	16	282	125
65	65	220	175	140	4	19	18	302	140

DN	d	L	D	C	NO.	h	t	H	D2
15	15	100	95	70	4	15	12	175	80
20	20	110	100	75	4	15	14	200	80
25	25	120	125	90	4	19	14	220	100
32	32	140	135	100	4	19	16	250	100
40	40	150	140	105	4	19	16	290	125
50	50	200	155	120	4	19	16	282	125
65	65	220	175	140	4	19	18	302	140

DN	d	L	D	C	NO.	h	t	H	D2
15	15	100	95	70	4	15	12	175	80
20	20	110	100	75	4	15	14	200	80
25	25	120	125	90	4	19	14	220	100
32	32	140	135	100	4	19	16	250	100
40	40	150	140	105	4	19	16	290	125
50	50	200	155	120	4	19	16	282	125
65	65	220	175	140	4	19	18	302	140

DN	d	L	D	C	NO.	h	t	H	D2
15	15	100	95	70	4	15	12	175	80
20	20	110	100	75	4	15	14	200	80
25	25	120	125	90	4	19	14	220	100
32	32	140	135	100	4	19	16	250	100
40	40	150	140	105	4	19	16	290	125
50	50	200	155	120	4	19	16	282	125
65	65	220	175	140	4	19	18	302	140
