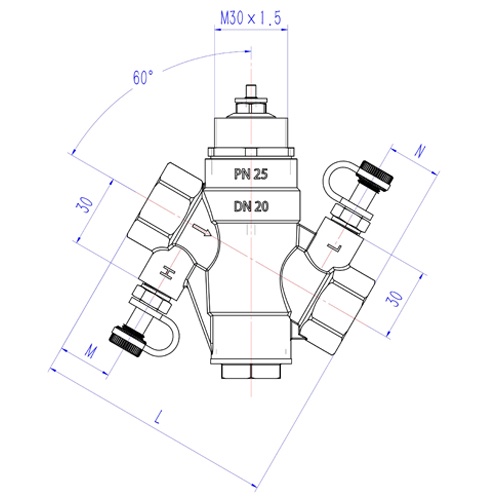

Brass Pressure Independent Control Valve

• Continual Balancing function maintains system performance even at varying loads.

• Pressure Regulator eliminates over-pumping providing favorable energy savings.

• IFLOW valves prevent energizing additional chillers by maintaining desired Delta T.

• IFLOW valves improve system operation reducing equipment requirement.

Chat Now

Message

PRODUCTS

Tel: +86- 532- 66952179/66952176/66952181

Email: qdiflow@qdiflow.com

Fax: +86-532-66952181

Sales office address: No.1001, Building 8, Liandong U Valley Kechuang Center, Chongqing Middle Road, Licang District, Qingdao, Shandong, China

Factory address: No.1001, Building 8, Liandong U Valley Kechuang Center, Chongqing Middle Road, Licang District, Qingdao, Shandong, China

Description

MODEL	SIZE INCH	SIZE DN	PN	Connections	ΔP Range (Kpa)	Kv (m³/h)	Stroke (mm)	Material
BAV9QT.DT0000.0015	1/2"	15	25	Thread	30-600	2.4	4-5	DZR Brass
BAV9QT.DT0000.0020	3/4"	20	25	Thread	30-600	3.2	4-5	DZR Brass
BAV9QT.DT0000.0025	1"	25	25	Thread	30-600	4.5	4-5	DZR Brass
BAV9QT.DT0000.0032	1 1/4"	32	25	Thread	30-400	3.6	5.5	DZR Brass
BAV9QT.DT0000.0040	1 1/2"	40	25	Thread	30-400	7.5	10	Stainless Steel
BAV9QT.DT0000.0050	2"	50	25	Thread	30-400	10	15	Stainless Steel
BAV9QT.DF0000.0065	2 1/2"	65	16	Flanged	30-400	23	20	Cast Iron
BAV9QT.DF0000.0080	3"	80	16	Flanged	30-400	33	20	Cast Iron
BAV9QT.DF0000.0100	4"	100	16	Flanged	30-400	60	40	Cast Iron
BAV9QT.DF0000.0125	5"	125	16	Flanged	30-400	72	40	Cast Iron
BAV9QT.DF0000.0150	6"	150	16	Flanged	30-400	125	40	Cast Iron

Specification

• I-FLOW's Pressure Independent Control Valve (PICV) offers precise flow control for optimizing environmental comfort in variable capacity heating and chilled water systems.

• Our PICVs, tested to BSRIA standards, guarantee linear performance with high-quality materials, ensuring optimal control valve authority. Enjoy flexibility with various actuator options, measuring points, and a wide range of differential pressures and flow rates.

• Our products are designed to help you create, implement, and maintain a system that minimizes performance gaps, leading to energy and cost savings throughout its lifecycle.
