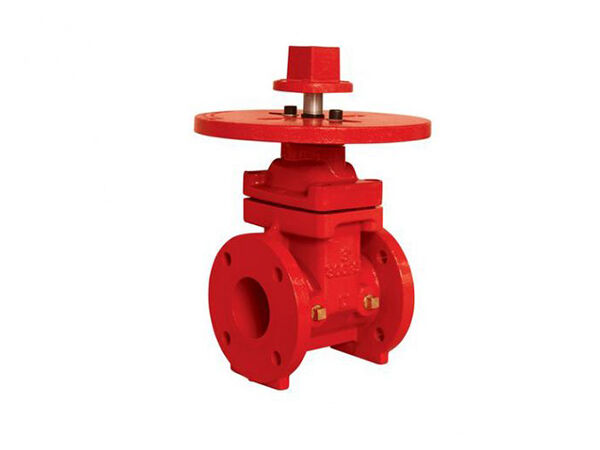

• 300PSI-NRS Type Flanged End Gate Valve
300PSI-NRS Type Flanged End Gate Valve

1.Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150
2.Connection type: flange type,groove type
3.Material:CI,DI,STAINLESS STAIN
4.Size: 2" - 12"
5.Pressure grade: 200PSI-300PSI
6.Type:OS&Y,NRS,with plate
UL/FM approval

Tel: +86-532-66952179/66952180

E-mail: qdiflow@qdiflow.com

Chat Now
Message
PRODUCTS
CONTACT US
Tel: +86- 532- 66952176
Email: qdiflow@qdiflow.com
Fax: +86-532-66952181
Sales office address: Unit 1517-1520, Building 4, Excellence Century Center, No. 31 Longcheng Road Qingdao, China.
Factory address: No.15, Jinshajiang Road, Tongji Street, Jimo District, Qingdao，China
Description
Specification
Related Products
Inquiry

Description

TECHNICAL REQUIREMENT :
    ● Design and Manufacture Conform to AWWA C515
    ● Flange to ANSI B16.1 Class 125.Other flange types available
    ● Fusion bonded epoxy coated inside and out
    ● Testing Conform to  AWWA C515

Specification

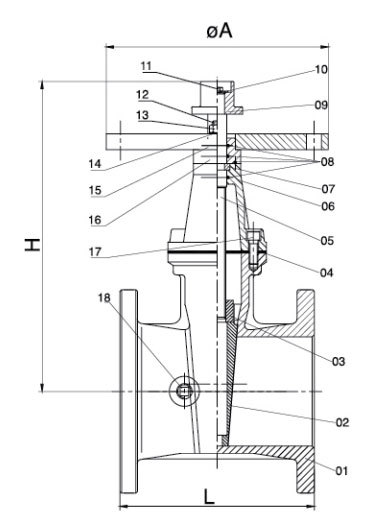

No. Part Name Material

Qingdao I-Flow Co., Ltd

1 Body ASTM A536 65-45-12
2 Wedge ASTM A536 65-45-12+EPDM
3 Wedge Nut ASTM B148 C95400
4 Gasket EPDM
5 Stem ANSI 420
6 Bonnet ASTM A536 65-45-12
7 Retainer Ring ASTM B62
8 O-Ring EPDM
9 Square Operating Nut ASTM A536 65-45-12
10 Flat Gasket ANSI 1045
11 Lock Nut ANSI 1035
12 Bolt ANSI 1035
13 Nut ANSI 1035
14 Washer ANSI 1035
15 Round Plate ASTM A536 65-45-12
16 Gland ASTM A536 65-45-12
17 Bonnet Bolt ANSI 1035
18 Plug Screw ASTM B62



Dimensions data(mm)



Size 2½" 3" 4" 5" 6" 8" 10" 12"
Dn 65 80 100 125 150 200 250 300
L 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6
H 292 322 342 412 448 534 635 720
ΦD1 139.5 152.5 190.5 216 241.5 298.5 362 432
N-Φ 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25
ΦA 305 305 305 305 305 305 305 305
