• 200PSI-OS&Y Type Flanged End Gate Valve
200PSI-OS&Y Type Flanged End Gate Valve

1.Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150
2.Connection type: flange type,groove type
3.Material:CI,DI,STAINLESS STAIN
4.Size: 2" - 12"
5.Pressure grade: 200PSI-300PSI
6.Type:OS&Y,NRS,with plate
UL/FM approval

Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572

E-mail: info@qdiflow.com

Description

TECHNICAL REQUIREMENT :
    ● Design and Manufacture Conform to AWWA C515
    ● Flange to ANSI B16.1 Class 125.Other flange types available
    ● Fusion bonded epoxy coated inside and out
    ● Testing Conform to  AWWA C515
    ● Norminal Pressure:200PSI

Specification

No. Part Name Material

Qingdao I-Flow Co., Ltd

1 Body ASTM A536 65-45-12
2 Wedge ASTM A536 65-45-12+EPDM
3 Wedge Nut ASTM B148 C95400
4 Gasket EPDM
5 Stem ANSI 304 / ASTM A276
6 Bonnet ASTM A536 65-45-12
7 Packing PTFE
8 Gland Bolt ANNSI 1035
9 Gland ASTM A536 65-45-12
10 Nut ANSI 1035
11 Stem Nut ASTM B148 C95400
12 Handwheel ANNSI 1045
13 Handwheel Nut ANNSI 1045
14 Flat key ANSI 416
15 Bonnet Bolt ANSI 1035
16 Cylinder Pin ANSI 1035
17 Plug Screw ASTM B62

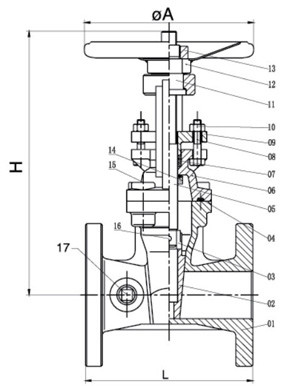

Dimensions data(mm)



Size 2" 2½" 3" 4" 5" 6" 8" 10" 12"
Dn 50 65 80 100 125 150 200 250 300
L 178 190 203 229 254 267 292 330 356
H 280 310 370 428 532 590 735 908 1150
ΦA 180 220 250 280 300 350 380 450 450
