• Cast Iron Angle-Strainer
Cast Iron Angle-Strainer

1.Three-in-one design – Combines an elbow, strainer, and flow straightener in one component.

2.Space-saving construction– Reduces the installation space required for multiple individual components.

3.Large filtration area– Provides effective filtration with relatively low flow resistance.

4.Flow-straightening plate– Helps reduce turbulence and minimize cavitation.


Description

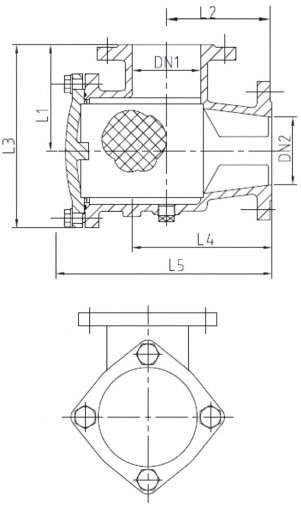

DN1×DN2L1L2L3L4L5Drawing
50×50105120168155205

1790235545961651338363539456.jpg@!w400

65×65115125195165220
80×80130135220185250
100×80130135220185250
100×100145185250230330
125×100145185250230330
125×125180230300300400
150×100145185250230330
150×125180230300300400
150×150209220349275380
200×125205220345275380
200×150205220345275380
200×200240280410370501


Specification

DN1×DN2L1L2L3L4L5
50×50105120168155205
65×65115125195165220
80×80130135220185250
100×80130135220185250
100×100145185250230330
125×100145185250230330
125×125180230300300400
150×100145185250230330
150×125180230300300400
150×150209220349275380
200×125205220345275380
200×150205220345275380
200×200240280410370501
