1. Globe Control Valves

Structure and Working Principle

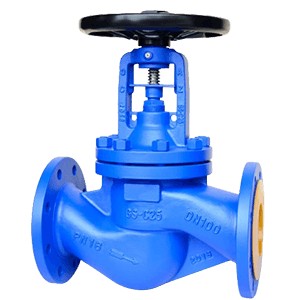

Globe valves are named after their spherical-shaped body. Inside the valve, a movable plug or disc is connected to a stem, which moves up and down in a linear motion. This movement opens or closes the flow passage. Because the flow must change direction as it passes through the valve, globe valves offer excellent throttling capability.

Advantages of Globe Valves

• Precision: Ideal for accurate flow control and regulation.

• Sealing performance: Provides tight shut-off when closed.

• Versatility: Handles high-pressure and high-temperature applications.

• Durability: Resistant to wear when designed with robust materials.

Limitations

• Higher pressure drop due to flow path changes.

• Bulkier and heavier than butterfly valves for large diameters.

Common Applications

• Steam and condensate systems in power plants.

• Cooling water circuits in HVAC systems.

• Chemical dosing processes where accuracy is critical.

• Oil & gas refineries where stable process control is required.

2. Butterfly Control Valves

Structure and Working Principle

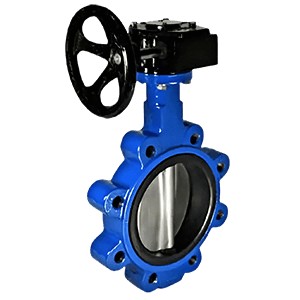

Butterfly valves use a circular disc positioned in the center of the pipeline. The disc rotates around a shaft, allowing flow to pass when aligned with the pipeline and restricting flow when turned perpendicular. A quarter-turn (90° rotation) is enough to fully open or close the valve, making it highly efficient.

Advantages of Butterfly Valves

• Lightweight and compact: Requires less space than globe valves.

• Cost-effective: Affordable solution for large pipe sizes.

• Quick operation: Fast quarter-turn control.

• Low maintenance: Fewer components compared to globe valves.

Limitations

• Not as precise for throttling compared to globe valves.

• Sealing performance can be less robust in high-pressure or high-temperature conditions.

Common Applications

• Water distribution and treatment plants.

• District heating and cooling systems.

• Marine and shipbuilding industries.

• HVAC systems for air and chilled water.

3. Ball Control Valves

Structure and Working Principle

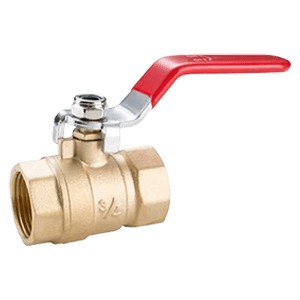

Ball valves feature a spherical ball with a central bore. When the bore aligns with the pipeline, the valve is fully open; when rotated 90°, the bore blocks the flow. Ball valves can be designed for both on/off isolation and throttling, depending on the seat and trim design.

Advantages of Ball Valves

• Quick shut-off: Fast quarter-turn operation.

• High-pressure handling: Suitable for demanding applications.

• Durability: Long service life with minimal leakage.

• Versatile: Available in floating and trunnion-mounted designs for different pressure ranges.

Limitations

• Throttling control is less accurate than globe valves.

• Can experience seat wear if used extensively for modulation.

Common Applications

• Oil & gas pipelines.

• Petrochemical industries.

• Compressed air and gas systems.

• Fire protection and safety systems.

How to Select the Right Control Valve

• For precise flow regulation → Globe control valve is best.

• For cost-effective, large-diameter systems → Butterfly control valve is ideal.

• For high-pressure shut-off and durability → Ball control valve is preferred.
