Understanding Balancing Valves

Balancing valves are used in systems where water or other fluids need to be distributed evenly across various parts of a network, such as in large-scale heating or cooling systems. The primary function of a balancing valve is to ensure that the correct amount of fluid is supplied to each part of the system, preventing any one area from receiving too much or too little fluid.

Proper fluid distribution improves energy efficiency, ensures uniform performance, and helps prevent overheating, overcooling, or damage to equipment. These valves also prevent the system from operating inefficiently, which can lead to unnecessary wear and higher operational costs.

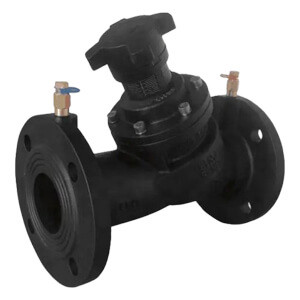

Manual balancing valves are designed to be adjusted manually by operators. These valves typically feature a valve handle or wheel that can be used to control the flow rate of the fluid within a system. Once set, the valve remains in place unless manually adjusted again.

Advantages

• Lower upfront cost compared to automatic balancing valves
• Simple to install and maintain
• Effective in systems where only occasional flow adjustments are needed
• Suitable for systems with steady or predictable flow demands

Disadvantages

• Requires manual intervention for adjustments, which may be time-consuming or challenging in large or complex systems
• Risk of human error in setting the flow correctly

• Limited ability to respond automatically to changing system conditions

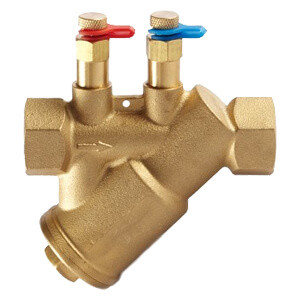

Automatic balancing valves are designed to adjust the flow rate automatically based on changes in system pressure or flow. These valves feature built-in mechanisms that detect pressure fluctuations and adjust the valve position accordingly to maintain a consistent flow, making them ideal for dynamic and complex systems.

Advantages

• Constant Flow Control: Automatically adapts to fluctuations in pressure and flow, ensuring balanced fluid distribution at all times

• Energy Efficiency: By maintaining optimal flow rates, automatic balancing valves can contribute to energy savings and improved system efficiency

• Less Manual Intervention: These valves require little to no manual adjustment, making them ideal for systems that need continuous operation without frequent maintenance

• Improved System Performance: Offers consistent performance without the risk of under or over-circulation

Disadvantages

• Higher initial cost compared to manual balancing valves
• May require more complex installation and calibration

• May need occasional maintenance or service to ensure sensors and regulating mechanisms are functioning correctly

When to Use Manual Balancing Valves vs. Automatic Balancing Valves

1. Manual Balancing Valves: These are ideal for smaller, less complex systems where flow conditions are relatively stable, and minimal adjustments are needed. They are often used in residential applications or in systems where a fixed flow rate is sufficient.

2. Automatic Balancing Valves: These valves are best suited for larger or more complex systems where flow conditions are constantly changing, and precise flow control is needed. They are particularly beneficial in applications like commercial HVAC systems, district heating, or large-scale industrial systems where energy efficiency and performance optimization are critical.

Applications of Manual and Automatic Balancing Valves

• HVAC Systems: To balance heating and cooling distribution across different zones.
• Chilled Water Systems: For controlling the flow of chilled water to ensure consistent temperature control.
• Hot Water Systems: In residential or commercial buildings to maintain an even distribution of hot water.
• District Heating and Cooling: To ensure equal distribution of heating or cooling fluids throughout a district or campus.
• Industrial Fluid Systems: Used in large industrial operations to manage the flow of fluids through extensive piping networks.
